CV Joint Axle Drive Shafts - Left Hand & Right Hand Side Front for Automatic & Manual FWD, 4WD & AWD including sub models City, City Elite & City SX.

Fits:

• 2.0L G4GC Petrol 4D SUV 04/2004-01/2010
• 2.0L D4EA Diesel 4D SUV 2006-2010



The Nitty Gritty
Left Hand Side

• Length (Compressed): 668mm
• Spline Count - Outer/Wheel Side: 27
• Spline Count - Inner/Diff Side: 27
• ABS Ring Teeth: 48
• Hub Nut: M22 x 1.5

Right Hand Side

• Length (Compressed): 965 mm
• Spline Count - Outer/Wheel Side: 27
• Spline Count - Inner/Diff Side: 27
• ABS Ring Teeth: 48
• Hub Nut: M22 x 1.5



What You Get

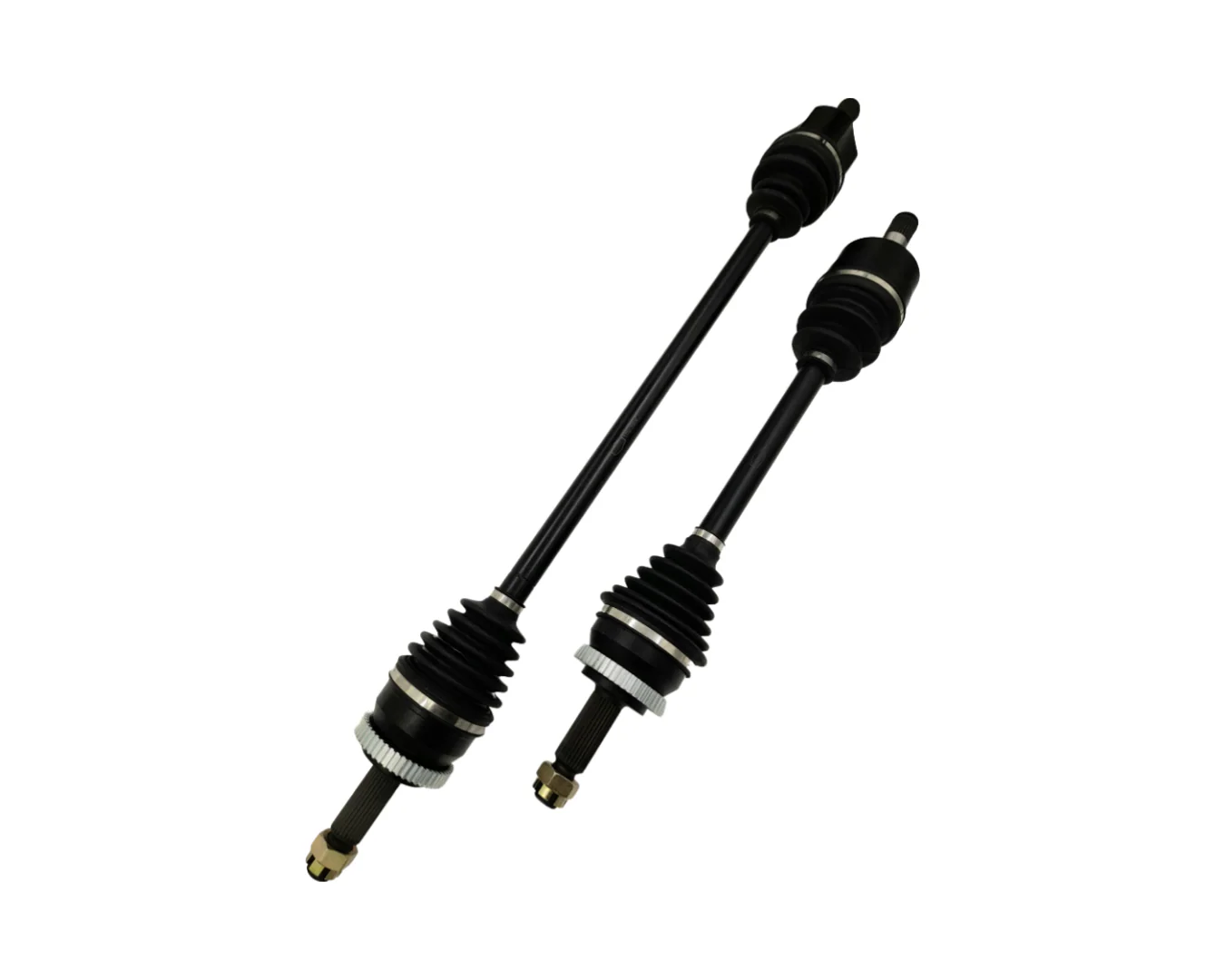

2 x CV Shafts

 

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

 

What You Really Get
Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
