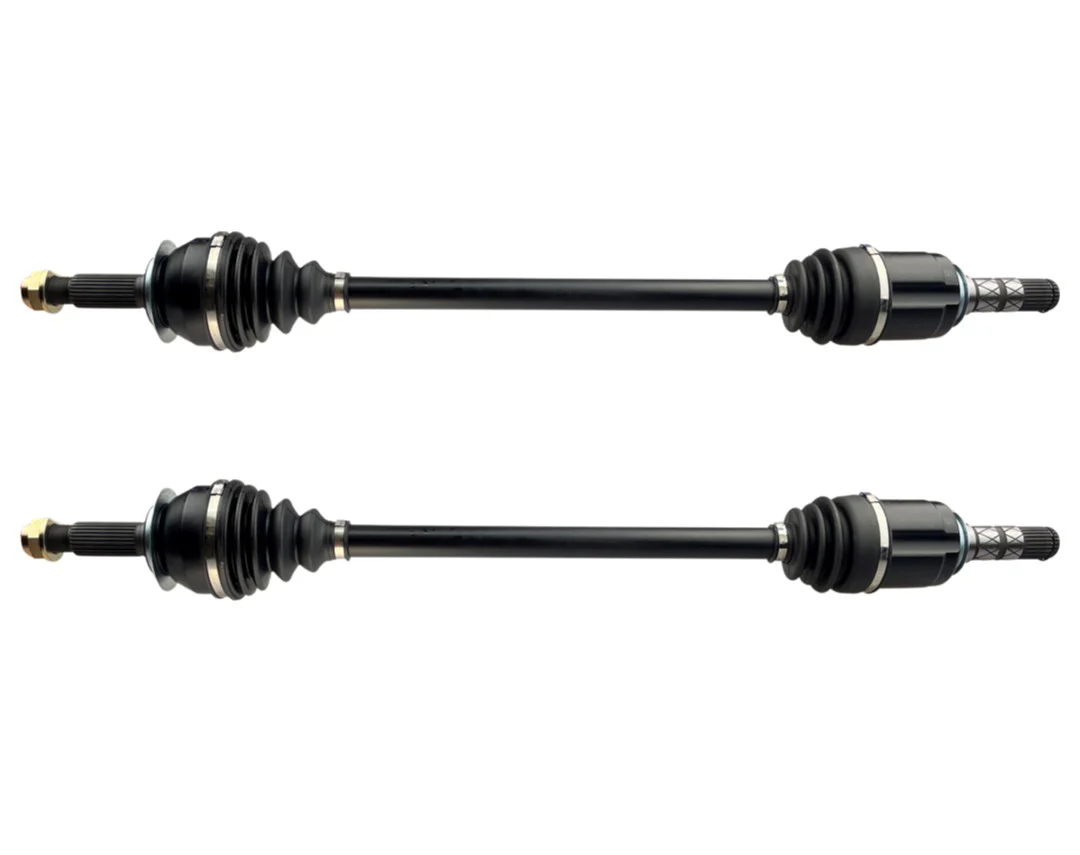

Pair CV Axle Drive Shafts - Left & Right Hand Side CVT, Automatic & Manual AWD

Please Check Lengths, Wheel Side Spline Length 86.5mm

Vehicle Fitment For:

• Outback Chassis: BSD Series: BS/B15 Engine: 2.0L EE20Z (08/2014 - 12/2020)
  Sub Models: 2.0D, 2.0D Premium
• Outback Chassis: BRD BRM Series: BR/B14 Engine: 2.0L EE20Z & 2.5L FB25A (10/2009 - 01/2015)
  Sub Models: 2.0D & Premium, 2.5i & Premium
• Outback Chassis: BT9 Series: BT/B16 Engine:2.5L FB25C (10/2020 ~ ON)
  Sub Models: AWD
• Liberty Chassis: BMM, BRM, BMF Series: BM/B14, BR/B14 Engine: 2.5L FB25A & 3.6l EZ36D (05/2009 - 11/2014)
  Sub Models: 2.5X, 2.5i, 2.5i Premium, 3.6R, 3.6X
• Tribeca Chassis: WXE, WXF Series: WX/W10 Engine: 3.0L EZ30D & 3.6L EZ36D (03/2006 - 08/2013)
  Sub Models: 3.0R, 3.0R Premium, 3.6R, 3.6R Columbia Limited Edition, 3.6R Premium


Sizing and Specifications

•  Length (Compressed)  826.5mm (Check especially for Outback. If 807mm required... check CVA1046)
• Spline Count - Outer/Wheel Side  27T
• Spline Count - Inner/Diff Side  25T
• Inboard Joint Type Tripod
• Outboard Joint Type Ball

 

What's Included

2 x CV Shaft

 Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
