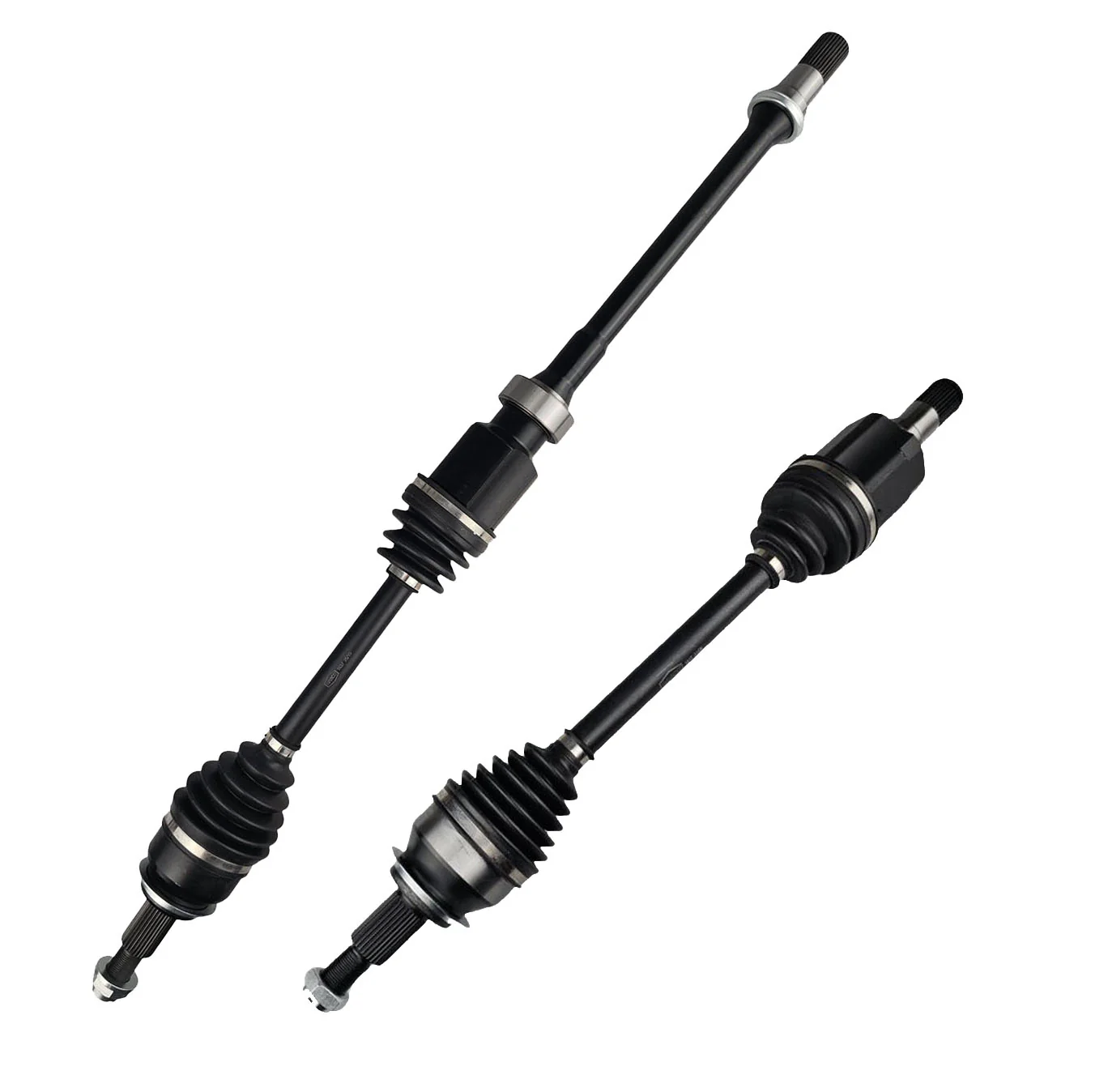

Brand New PAIR Left Right Front CV Drive Shafts

***Note: Please double check before purchasing. ***

Built tough to OEM specifications using heat-treated chrome steel for maximum product life. High-quality Neoprene dust boots and stainless steel clamps help prevent contamination. Packed with moly grease to perform at varying angles and speeds without friction, even at high revolutions.

Vehicle Fitment Information for:

• Mazda 6 Mazda6 GJ GL 2.5L PY-VPS FWD (12/2012 - 05/2018) Automatic Only
• Includes Sub Models ATENZA, GT, GT SAFETY, SPORT, SPORT SAFETY, TOURING, TOURING SAFETY

⚠️ Important Notes for You:
We strongly advise using the Australian Number Plate lookup to confirm fitment.

Sizing and Specifications

Left CV Shaft

• Length (Compressed) : 652mm
• Spline Count Outer/Wheel Side : 31
• Spline Count Inner/Diff Side : 31

Right CV Shaft

• Length (Compressed): 1019 mm
• Spline Count - Outer/Wheel Side: 31
• Spline Count - Inner/Diff Side: 31
• Inboard Joint Type: Tripod
• Outboard Joint Type: Ball
• Hub Nut: M22 x 1.5
• Extension Shaft Length from Bearing: 70 mm
• Extension Shaft Length from Tin Seal: 88 mm
• Extension Shaft Bearing Cradle OD: 25 mm
• Extension Shaft Bearing Cradle Bolt Hole PCD: 430 mm

What's Included

• 2 x CV Shafts

All components include a 12 month/20,000km warranty and support from our specialist team.
