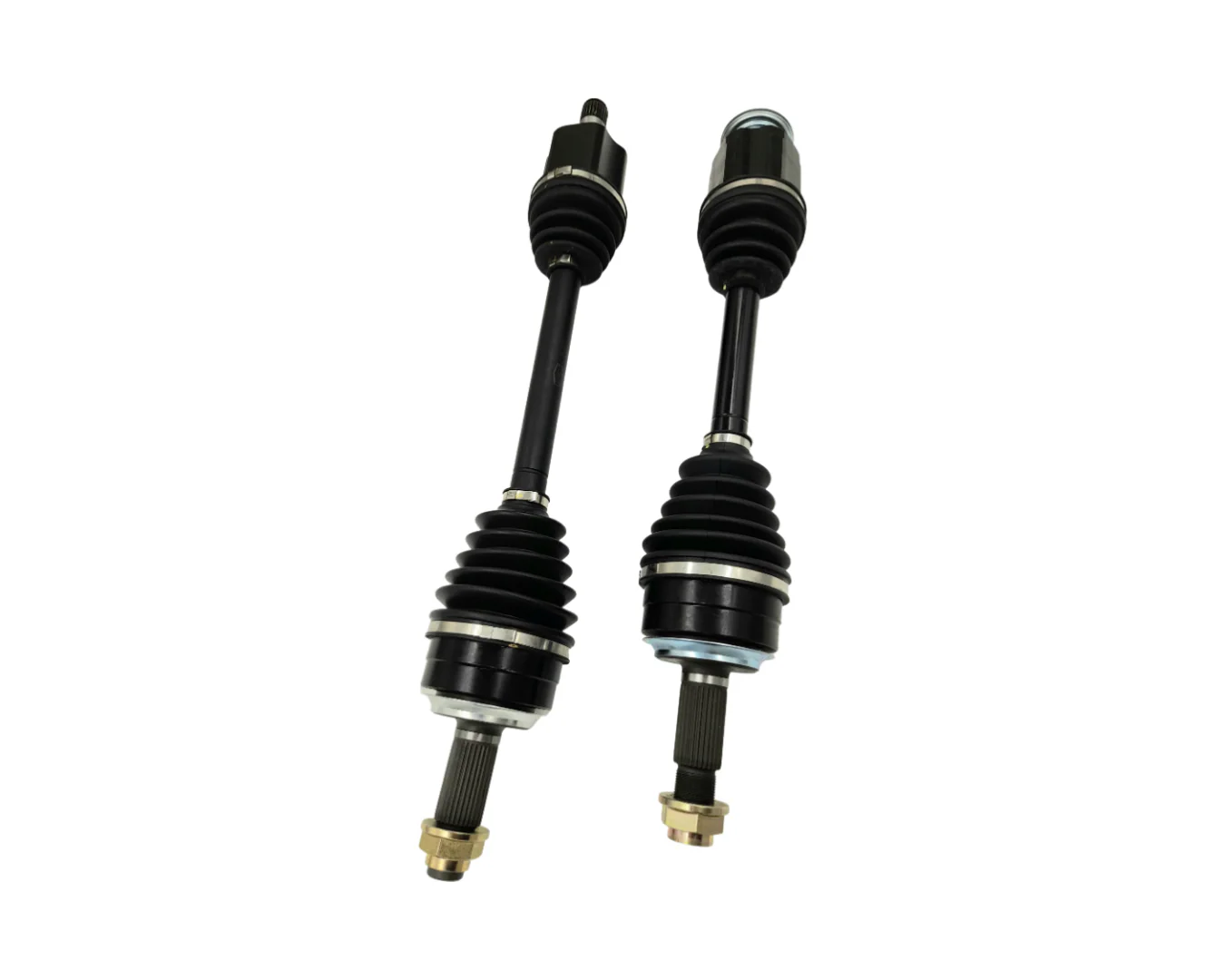

2X CV Drive Shaft for Honda CRV RE RM 2.4L K24Z1 K24Z9 K24A 4WD 2006-2017

Product image 1

2X CV Drive Shaft for Honda CRV RE RM 2.4L K24Z1 K24Z9 K24A 4WD 2006-2017

CV Axle Drive Shaft PAIR Left and Right Hand Side Automatic 4WD

PAIR kit, For 2.4L 4WD Models Only

Vehicle Fitment

  • Honda CRV RE RE4 2.4L K24Z1 4WD Manual Automatic (10/2006 - 10/2012)
    Includes Sub-Models
  • Honda CRV RM RM4 2.4L K24A K24Z9 4WD Automatic (11/2012 - 06/2017)
    Includes Sub-Models VTi, VTi LE, VTi Plus, VTi-L, VTi-LT, VTi-S


Sizing and Specifications

Right Hand Side

  • Length (Compressed): 558mm
  • Spline Count - Outer/Wheel Side: 30
  • Spline Count - Inner/Diff Side - Female: 25 + 2 Blank
  • Inboard Joint Type: Tripod
  • Outboard Joint Type: Ball

Left Hand Side

  • Length (Compressed): 672mm
  • Spline Count - Outer/Wheel Side: 30
  • Spline Count - Inner/Diff Side: 27
  • Inboard Joint Type: Tripod
  • Outboard Joint Type: Ball

 

What's Included

  • 2 x CV Shaft

 Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

$104.10
2X CV Drive Shaft for Honda CRV RE RM 2.4L K24Z1 K24Z9 K24A 4WD 2006-2017—
$104.10

Product Information

Shipping & Returns

Description

CV Axle Drive Shaft PAIR Left and Right Hand Side Automatic 4WD

PAIR kit, For 2.4L 4WD Models Only

Vehicle Fitment

  • Honda CRV RE RE4 2.4L K24Z1 4WD Manual Automatic (10/2006 - 10/2012)
    Includes Sub-Models
  • Honda CRV RM RM4 2.4L K24A K24Z9 4WD Automatic (11/2012 - 06/2017)
    Includes Sub-Models VTi, VTi LE, VTi Plus, VTi-L, VTi-LT, VTi-S


Sizing and Specifications

Right Hand Side

  • Length (Compressed): 558mm
  • Spline Count - Outer/Wheel Side: 30
  • Spline Count - Inner/Diff Side - Female: 25 + 2 Blank
  • Inboard Joint Type: Tripod
  • Outboard Joint Type: Ball

Left Hand Side

  • Length (Compressed): 672mm
  • Spline Count - Outer/Wheel Side: 30
  • Spline Count - Inner/Diff Side: 27
  • Inboard Joint Type: Tripod
  • Outboard Joint Type: Ball

 

What's Included

  • 2 x CV Shaft

 Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.
