Brand New PAIR Front CV Drive Shaft

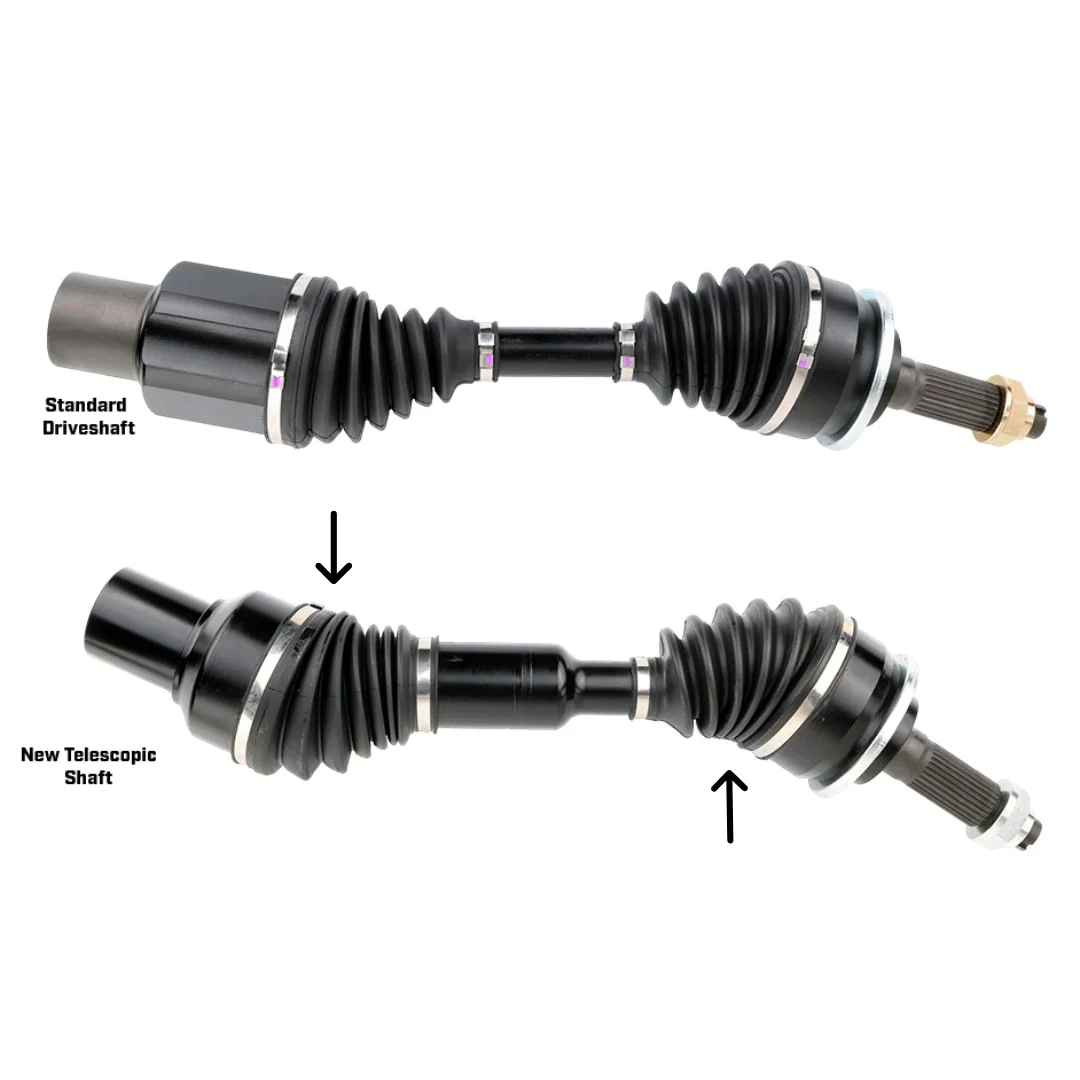

***New Heavy Duty Telescopic Design - Sliding Extension Shaft with Roller Splines PAIR Kit For Lifted and Non-Lifted Vehicles, Compressed Length 609mm Extends to 666mm***

Built tough to OEM specifications using heat-treated chrome steel for maximum product life. High-quality Neoprene dust boots and stainless steel clamps help prevent contamination. Packed with moly grease to perform at varying angles and speeds without friction, even at high revolutions.

Vehicle Fitment

• Ford Ranger PX1, PX2, PX3 2.0L Y2NS 2.2L P4AT, 3.2L P5AT 4WD Manual Automatic (09/2011-06/2022) - Does not fit Raptor, Raptor X models
• Mazda BT50 UP UR 3.2L P5AT 4WD Manual Automatic (11/2011-07/2020)

⚠️ Important Notes for You:
We strongly advise using the Australian Number Plate lookup to confirm fitment.

Sizing and Specifications

Left CV Shaft

• Length: 609mm (Compressed) - 666mm (Extended)
• Spline Count - Outer/Wheel Side: 28T
• Spline Count - Inner/Diff Side: 29T
• Inboard Joint Type: Ball
• Outboard Joint Type: Ball

• Inner Joint Seal ID: 35.6mm
• Hub Nut Style: M24 x 1.5
• Telescopic Design: Centre Bar Housing Has an Extending Roller Spline

Right CV Shaft

• Length: 568mm (Compressed) - 625mm (Extended)
• Spline Count - Outer/Wheel Side: 28T
• Spline Count - Inner/Diff Side: 28T +1 Blank Keyway
• Inboard Joint Type: Ball
• Outboard Joint Type: Ball

• Hub Nut Style: M24 x 1.5
• Telescopic Design: Centre Bar Housing Has an Extending Roller Spline

What's Included

• 2 x Telescopic CV Shaft

All components include a 12 month/20,000km warranty and support from our specialist team.
