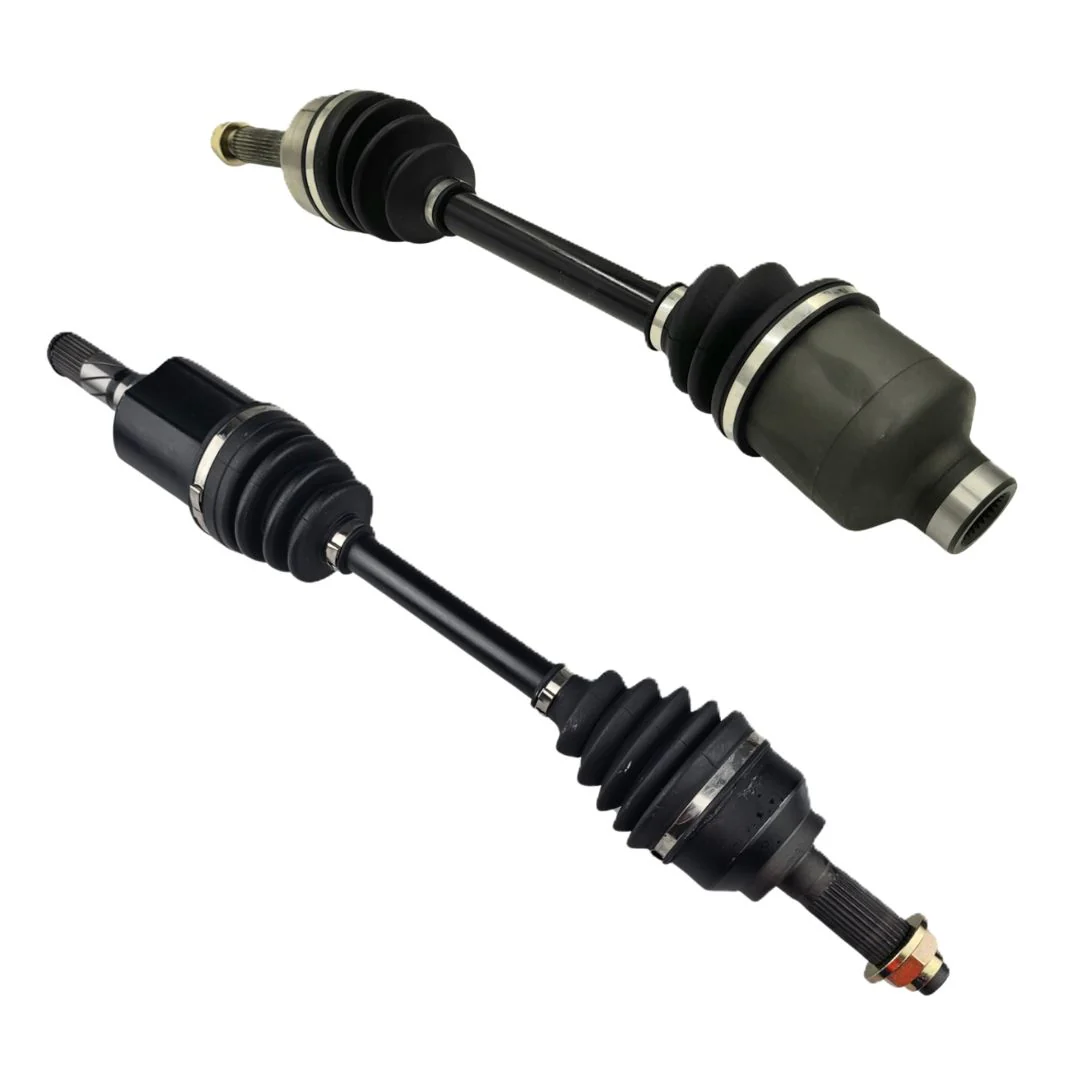

Pair CV Axle Drive Shaft - Left and Right Hand Side Manual Transmission FWD

For Manual Only, female diff joint (Right CVA) and hub nut style outer joint

For Auto

***Does not fit models with RF engine code, Does not fit BK BK3S BK3P Series***

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.



Vehicle Fitment

• Mazda 3 BL 2.0L LFDE FWD (04/2009 - 01/2014) Manual Only
  Sub-Models Include MAXX, MAXX Sport, NEO


Sizing and Specifications

Left CV Shaft

• Length: 635mm
• Spline Count (Wheel Side): 28
• Spline Count (Diff Side): 28

Right CV Shaft

• Length (Compressed): 596mm
• Spline Count Outer/Wheel Side: 28
• Spline Count Inner/Diff Side: 28
• Inner/Diff Joint Type: Female



What's Included

• 2 x CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
