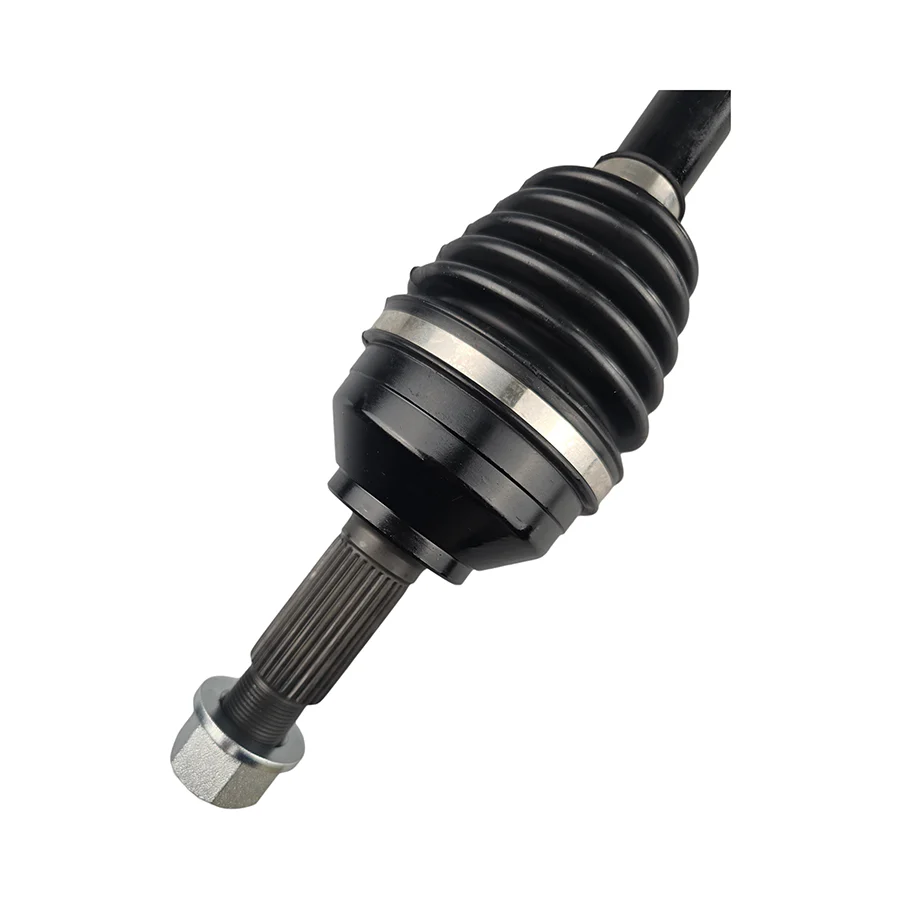

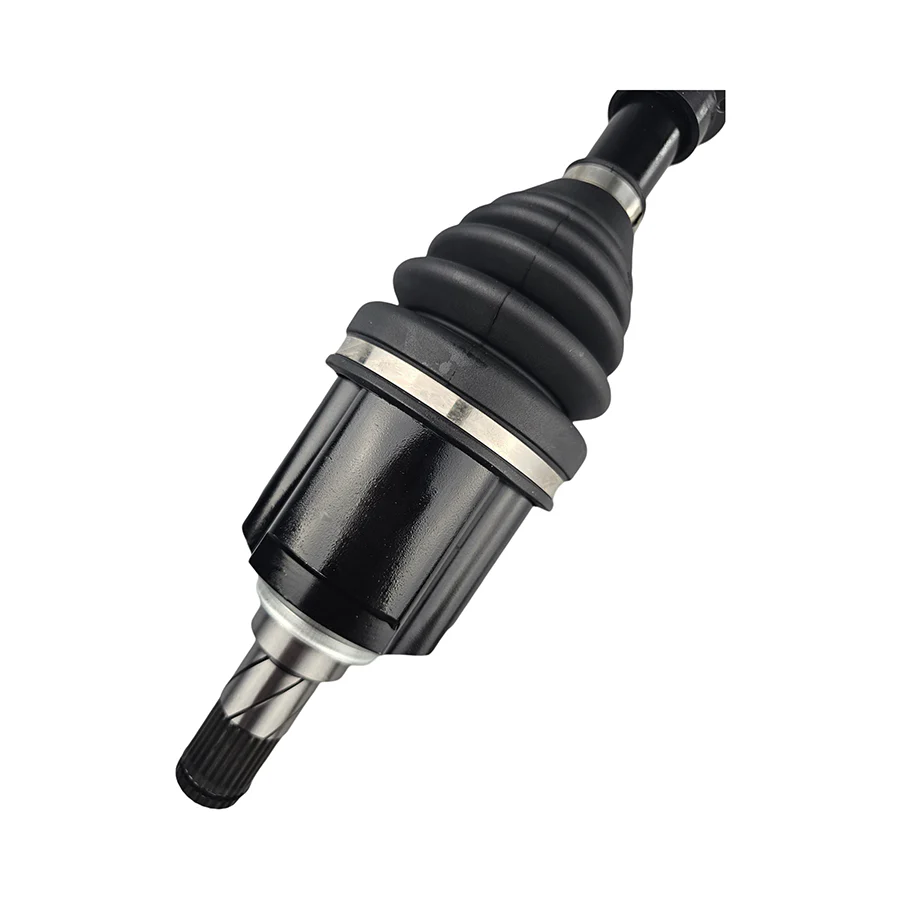

CV Axle Drive Shaft - Front Left Hand Side CVT FWD

***CVT only, please see fitment notes for hand side position, For AWD Check Inner Joint Spline Length, if not Correct Check part no: CVA1087***

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

Vehicle Fitment

• Renault Koleos H45 2.0L M9R.832 DOHC Turbo I/C Diesel FWD CVT (09/2009 - 04/2010) CVT, Left side only
  Includes Sub-models Dynamique
• Renault Koleos H45 2.5L 2TR.700/2/3  DOHC VVT Petrol FWD AWD CVT (09/2008 - 08/2016) For Left and Right AWD CVT Only - Check Inner Joint Spline Length, if not Correct Check part no: CVA1087
  Includes Sub-models BOSE SE, Dynamique, Expression, Privilege, Sport Way Limited Edition

Sizing and Specifications

• Length (Compressed): 667mm
• Spline Count - Outer/Wheel Side: 29T
• Spline Count - Inner/Diff Side: 27T
• Inboard Joint Type: Tripod
• Outboard Joint Type: Ball
• ABS Ring Teeth: 48
• Hub Nut Style: M24 x 1.5



What's Included

• 1 x CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
