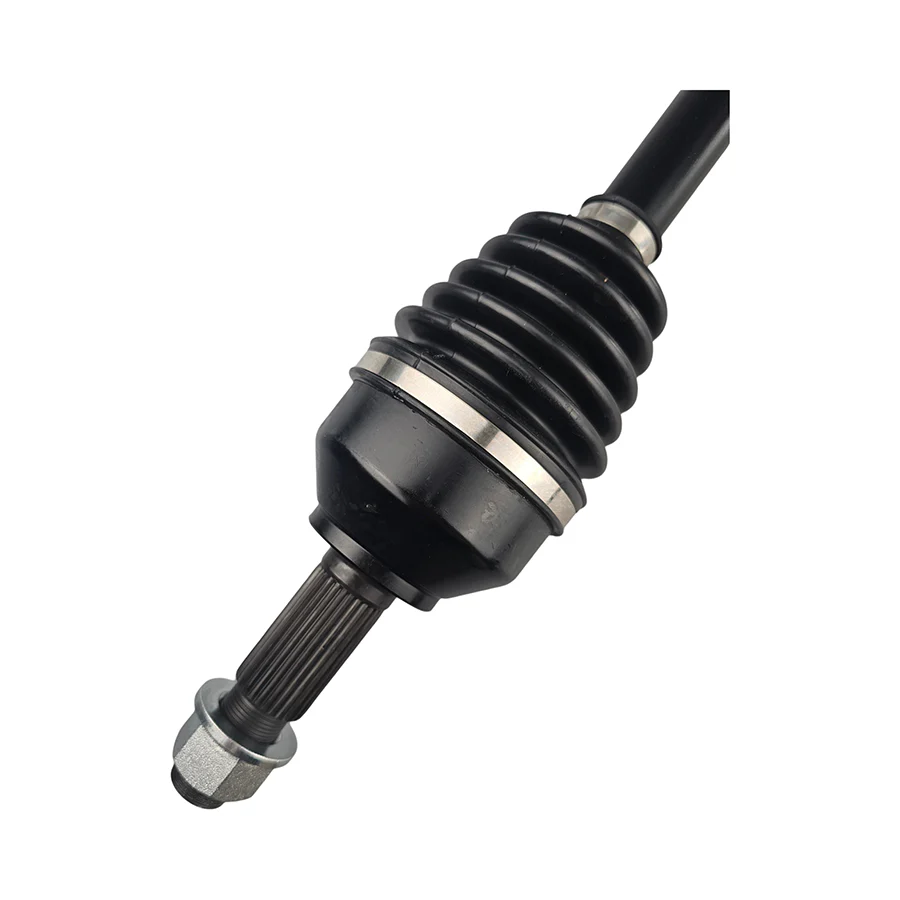

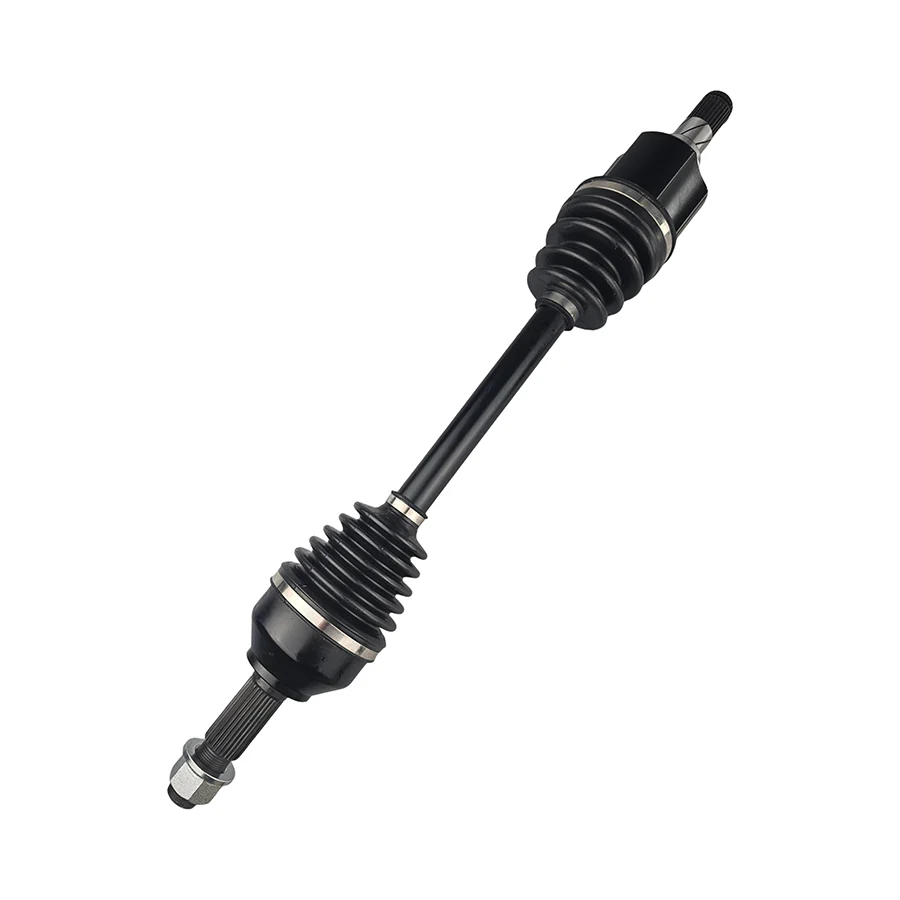

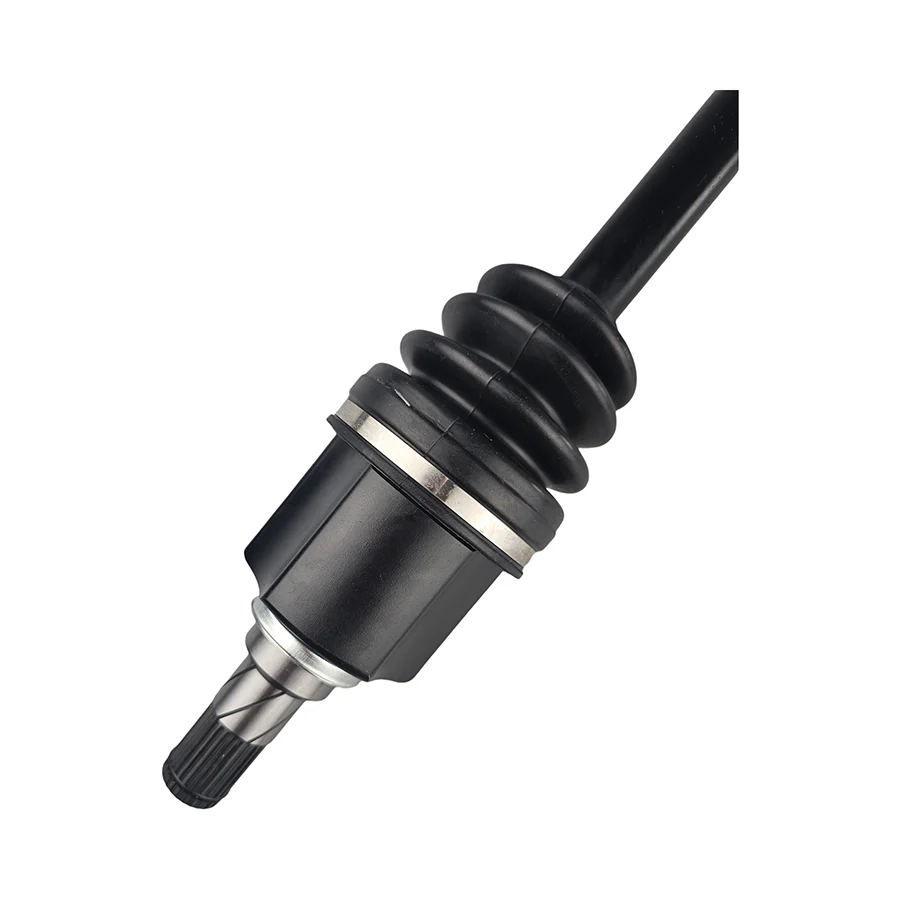

CV Axle Drive Shaft - Front Left Hand Side CVT FWD

Front left, for FWD CVT transmission only

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

Vehicle Fitment

• Renault Koleos HZG 2.5L 2TR 16V DOHC VVT CVT FWD (08/2016 - Onwards)
  Includes Sub-models Black Edition, Formula Edition, Iconic Edition, Intens S-Edition X-Tronic, Intens X-Tronic, Life, Life X-Tronic, Zen, Zen X-Tronic, Zen Carplay X-Tronic

Sizing and Specifications

• Length (Compressed): 665mm
• Spline Count - Outer/Wheel Side: 29T
• Spline Count - Inner/Diff Side: 27T
• Inboard Joint Type: Tripod
• Outboard Joint Type: Ball
• Inner Joint Seal ID: 40mm
• Hub Nut Style: M24 x 1.5



What's Included

• 1 x CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
