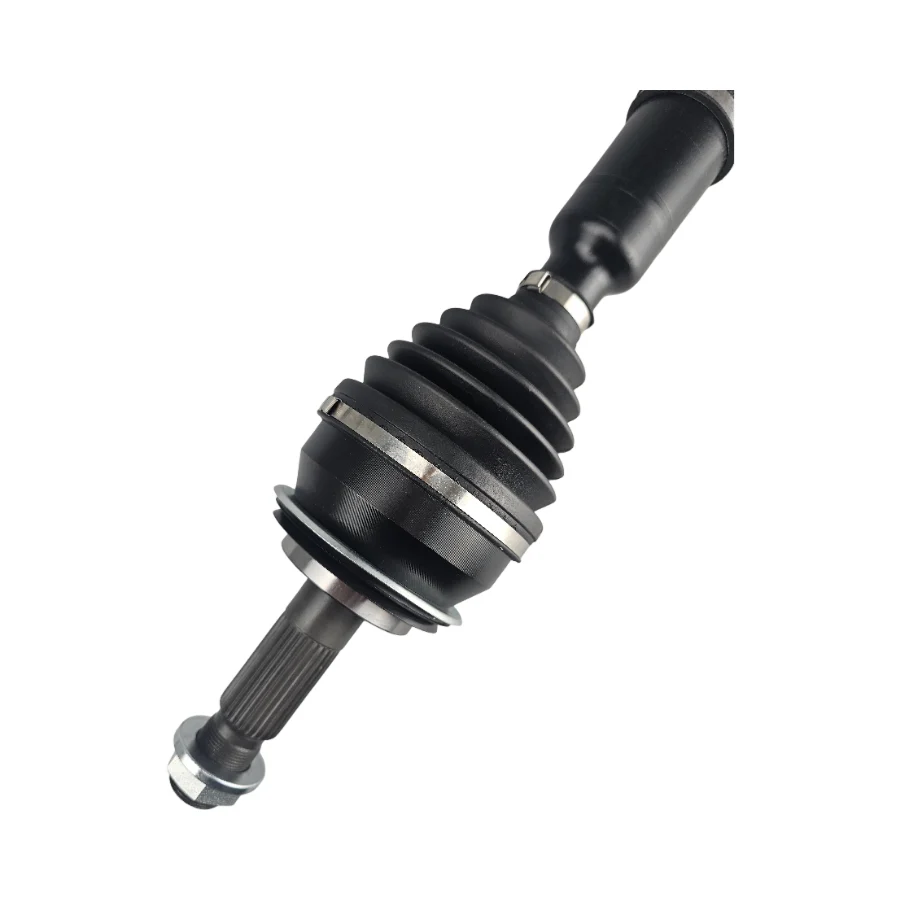

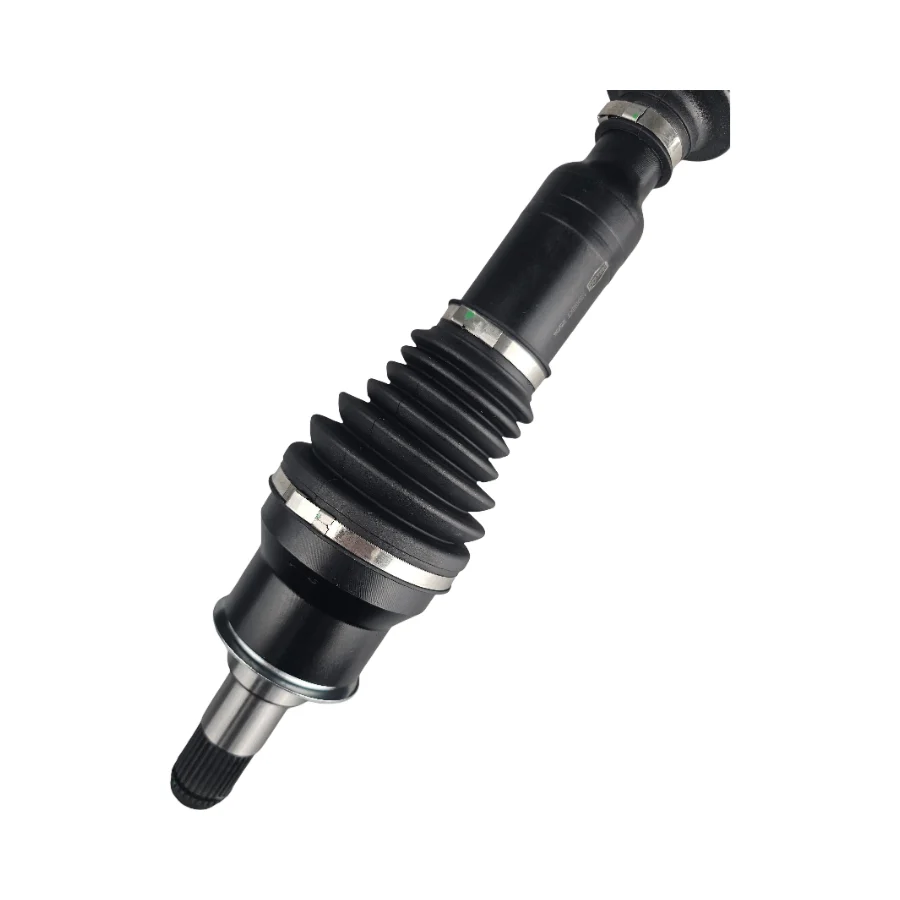

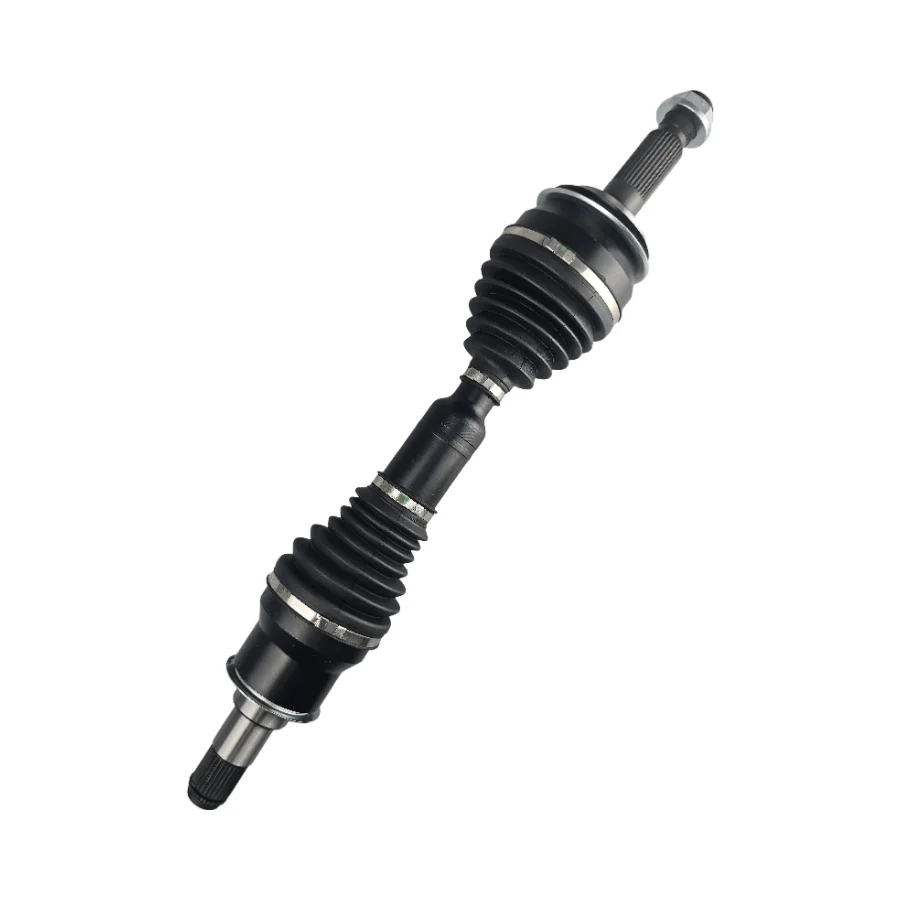

Brand New Front Telescopic CV Drive Shaft

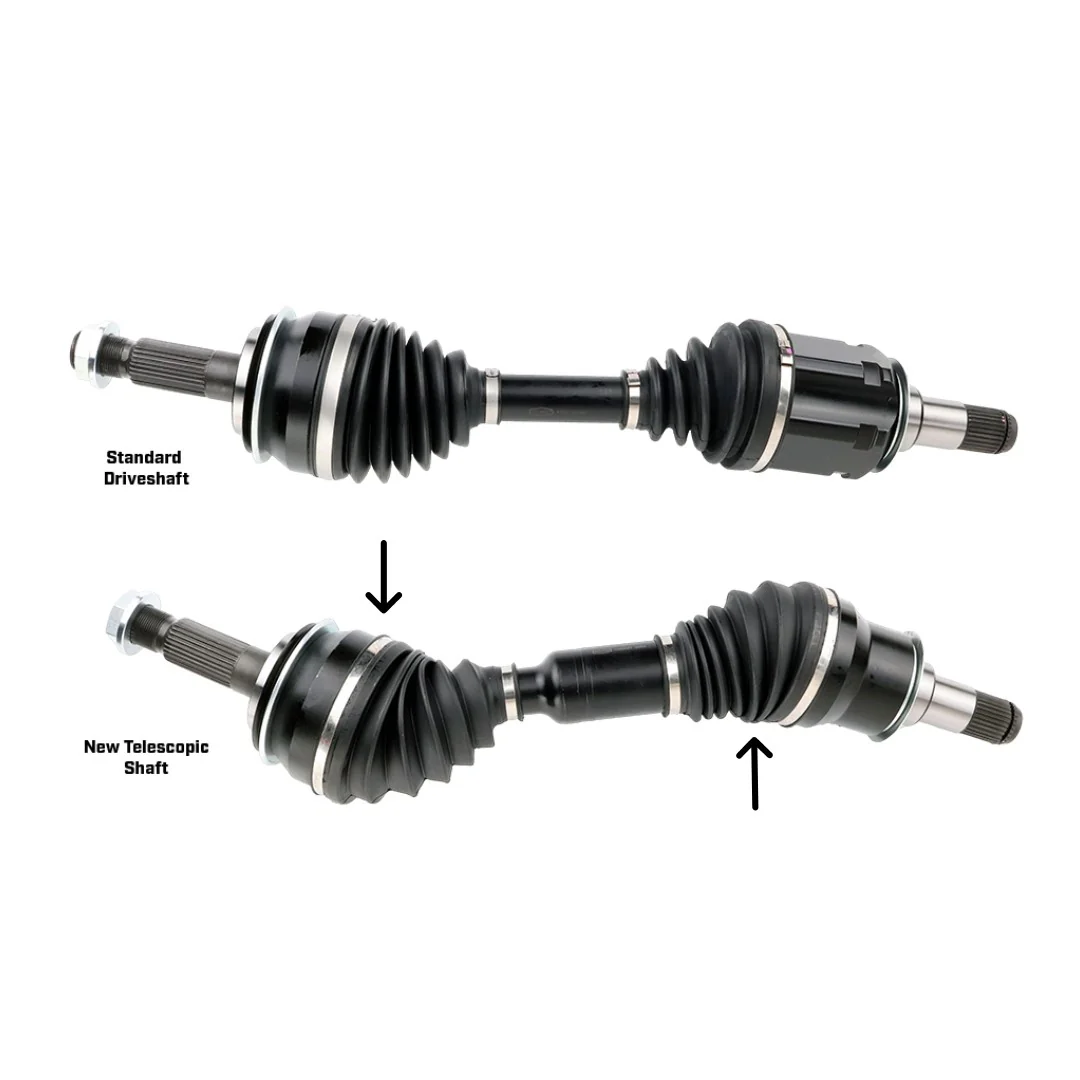

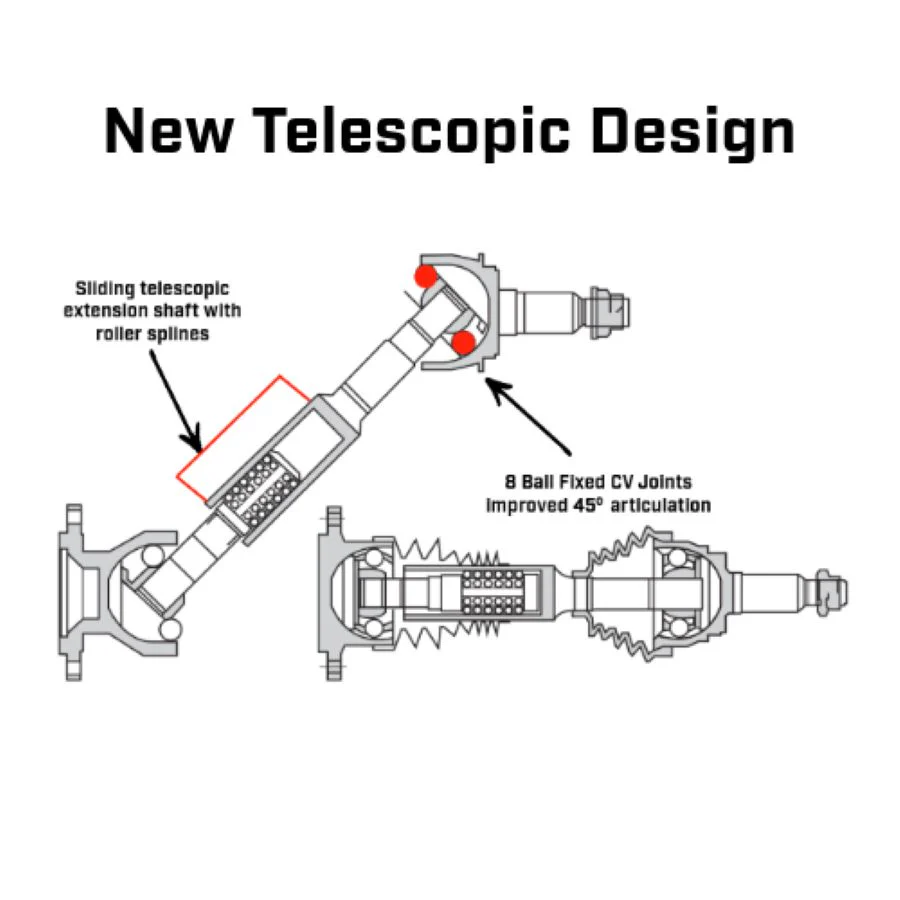

***New Heavy Duty Telescopic Design - Sliding Extension Shaft with Roller Splines for Lifted and Non-Lifted Vehicles, Compressed Length 630mm Extends to 687mm***

Built tough to OEM specifications using heat-treated chrome steel for maximum product life. High-quality Neoprene dust boots and stainless steel clamps help prevent contamination. Packed with moly grease to perform at varying angles and speeds without friction, even at high revolutions.

Vehicle Fitment

• Toyota Hilux SR, SR5, SR5 Extra Cab, TRD S, TRD SL GGN25R (03/2005~01/2014) 4.0L Petrol 1GRFE
• Toyota Hilux TRD S, TRD SL GGN25R (04/2008~05/2009) 4.0L Petrol 1GRFE
• Toyota Hilux SR, SR5, SR Extra Cab, SR5 Extra Cab, SR Workmate KUN26R (03/2005~09/2015) 3.0L Diesel 1KDFTV

⚠️ Important Notes for You:
We strongly advise using the Australian Number Plate lookup to confirm fitment.

Sizing and Specifications

• Length (Compressed): 630 mm
• Length (Extended): 687 mm
• Spline Count - Outer/Wheel Side: 30
• Spline Count - Inner/Diff Side: 30 mm
• Outboard Joint Type: Ball
• Inboard Joint Type: Ball
• Drive Shaft Seal (Inner) ID: 47 mm
• Hub Nut: M28 x 1.5

What's Included

• 1 x Telescopic CV Axle Drive Shaft

All components include a 12 month/20,000km warranty and support from our specialist team.
