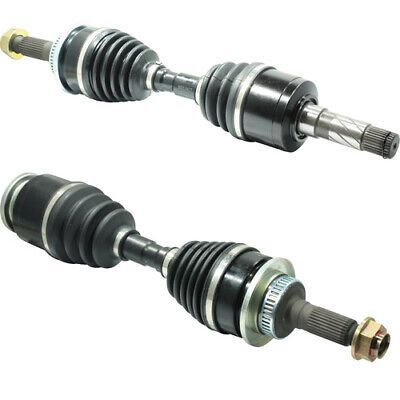

Two Brand New Front CV Drive Shaft

***Pair Kit, ABS - Please Check Before Fitting***

Built tough to OEM specifications using heat-treated chrome steel for maximum product life. High-quality Neoprene dust boots and stainless steel clamps help prevent contamination. Packed with moly grease to perform at varying angles and speeds without friction, even at high revolutions.

Vehicle Fitment

• Ford Ranger PJ, PK S1E9 (01/2007~08/2011) 3.0L Diesel WEAT
• Ford Ranger PJ, PK S2E9 (01/2007~08/2011) 3.0L Diesel WEAT
• Ford Ranger PJ, PK SAE9 (01/2007~08/2011) 3.0L Diesel WEAT
• Ford Ranger PJ, PK SEE9 (01/2007~08/2011) 3.0L Diesel WEAT
• Ford Ranger PJ, PK SFE9 (01/2007~08/2011) 3.0L Diesel WEAT
• Mazda BT50 UN, UY UNE0 (11/2006~10/2011) 3.0L Diesel WEAT
• Mazda BT50 UN, UY UNY0E (11/2006~10/2011) 3.0L Diesel WEAT
• Mazda BT50 UN, UY UNY0E (11/2006~10/2011) 3.0L Diesel WEAT

⚠️ Important Notes for You:
We strongly advise using the Australian Number Plate lookup to confirm fitment.

Sizing and Specifications

Left CV Shaft

• ABS: Yes, Tone Ring
• Length (Compressed): 491 mm
• Spline Count - Outer/Wheel Side: 28
• Spline Count - Inner/Diff Side: 26 + 2 Blank
• ABS Ring Teeth: 44
• Hub Nut: M24 x 1.5

Right CV Shaft

• ABS: Yes, Tone Ring
• Length (Compressed): 580 mm
• Spline Count - Outer/Wheel Side: 28
• Spline Count - Inner/Diff Side: 30
• ABS Ring Teeth: 44T
• Hub Nut: M24 x 1.5

What's Included

• 2 x CV Drive Shaft

All components include a 12 month/20,000km warranty and support from our specialist team.
