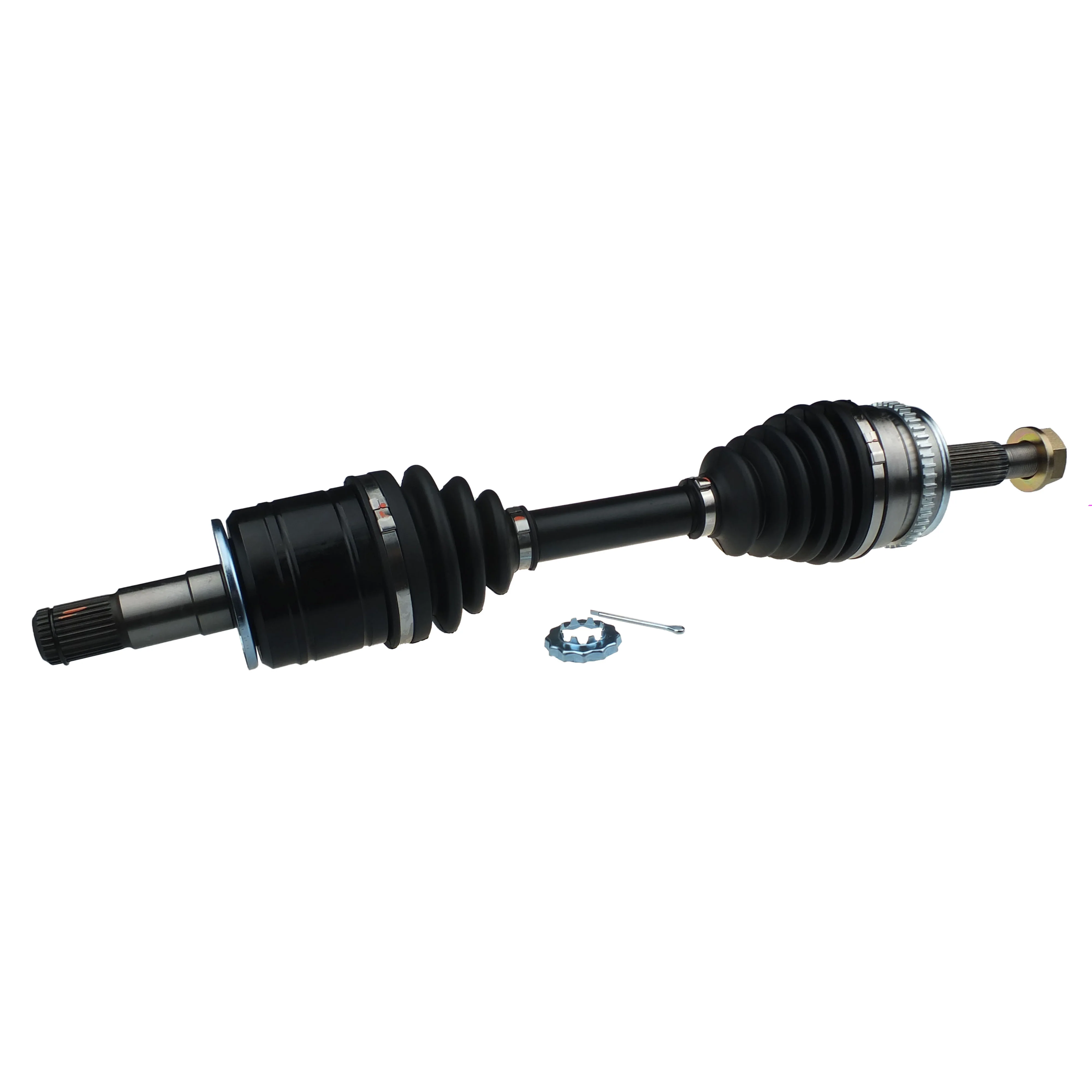

CV Axle Drive Shaft - Front Left Hand Side Automatic Manual FWD

***Note length is 603mm, if you need length 593mm use CVA1484***

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.



Vehicle Fitment Information

• Mitsubishi Triton MN KB4 2.5L 4WD MT AT (09/2009 - 04/2015) Manual: Length 603mm, if you need 593mm see CVA1484
  Includes Sub-models GLX, GLX-R, GL-R, GLX Club, Activ
• Mitsubishi Triton ML KB9 3.5L 4WD MT AT (11/2006 - 06/2009) Length 603mm, if you need 593mm see CVA1484
  Includes Sub-models GLS, GLX, GLX-R, VR
• Mitsubishi Triton ML KB8 3.2L 4WD MT AT (07/2006 - 08/2009)
  Includes Sub-models GLS, GLX, GLX-R, VR
• Mitsubishi Pajero NS NT NW V87W V97W 3.8L 4WD MT AT (10/2006 - 05/2013)
  Includes Sub-models R, X, GLX, VRX, Activ, Platinum Edition, Exceed



Sizing and Specifications

• Diff Side Spline: 28T
• Wheel Side Spline: 30T
• ABS Ring: 47T
• Overall Length: 603mm
• Diff Seal Size: 32.0mm
• Wheel Seal Size: 60.0mm



What's Included

• 1 x CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
