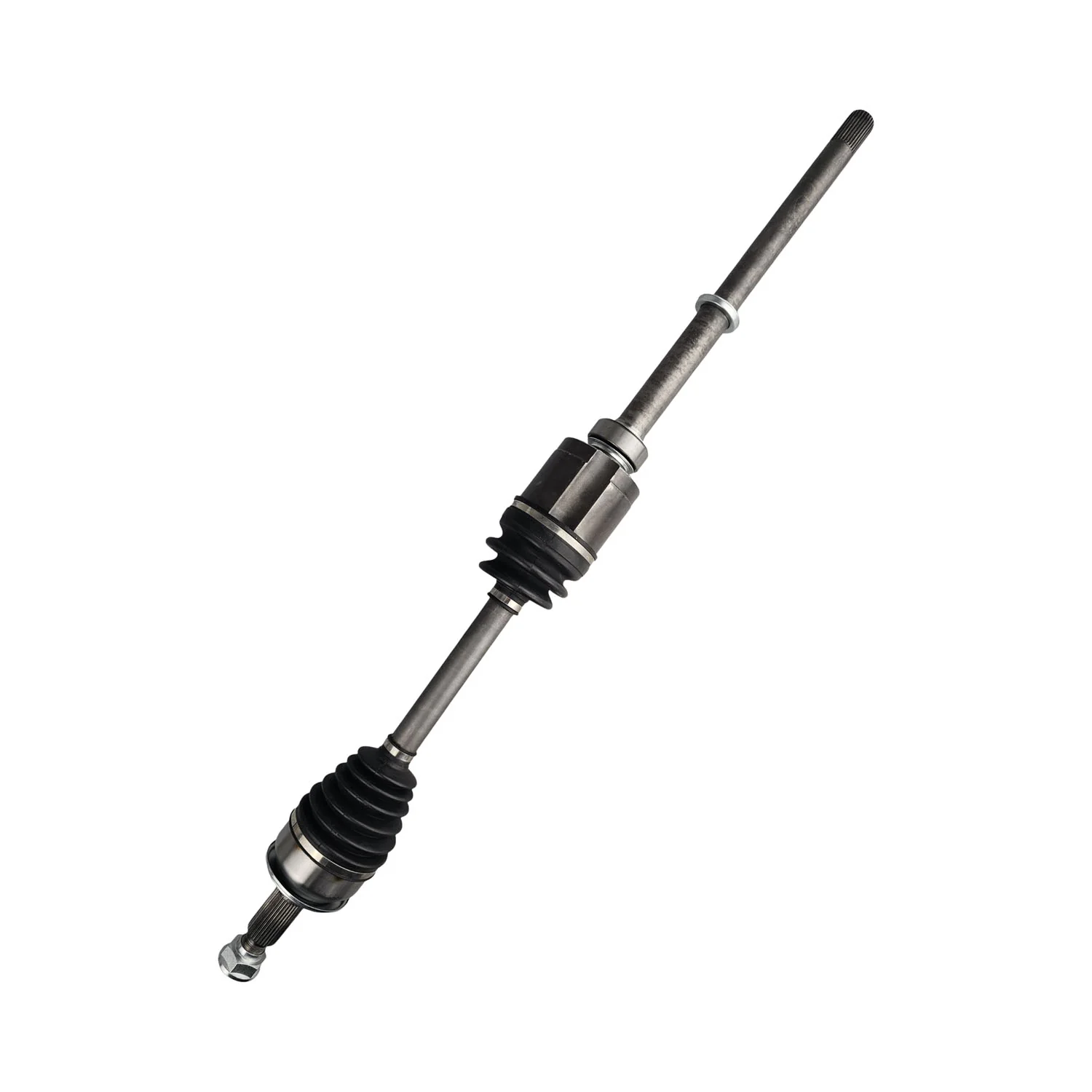

Brand New Left & RIght Front CV Drive Shaft

***AWD Models Only***

Built tough to OEM specifications using heat-treated chrome steel for maximum product life. High-quality Neoprene dust boots and stainless steel clamps help prevent contamination. Packed with moly grease to perform at varying angles and speeds without friction, even at high revolutions.

Vehicle Fitment

• Nissan Pathfinder R53 MDNR53 (07/2022~2026) 3.5L Petrol VQ35DD AWD

⚠️ Important Notes for You:
We strongly advise using the Australian Number Plate lookup to confirm fitment.

Sizing and Specifications

CVA1690 (Right)

• Length (Compressed) Including Extension Shaft:  1016mm

• Spline Count - Outer/Wheel Side:  32 Teeth

• Spline Count - Inner/Diff Side:  28 Teeth

• Outboard Joint Type:  Ball

• Inboard Joint Type: Tripod

• Extension Shaft Length From Outside of Bearing:  423mm

• Extension Shaft Bearing OD:  62mm

• Ext Shaft Length Inside of Dust Cover to Shaft End:  253mm

• Drive Shaft Seal - Wheel Side ID:  29mm

• Hub Nut Style:  M24 x 1.5

CVA1691 (Left)

• Length (Compressed):  687mm

• Spline Count - Outer/Wheel Side:  32 Teeth

• Spline Count - Inner/Diff Side:  30 Teeth

• Outboard Joint Type:  Ball

• Inboard Joint Type:  Tripod

• Drive Shaft Seal - Wheel Side ID: 36.2mm

• Hub Nut Style: M24 x 1.5

What's Included

• 2 x CV Shaft

All components include a 12 month/20,000km warranty and support from our specialist team.
