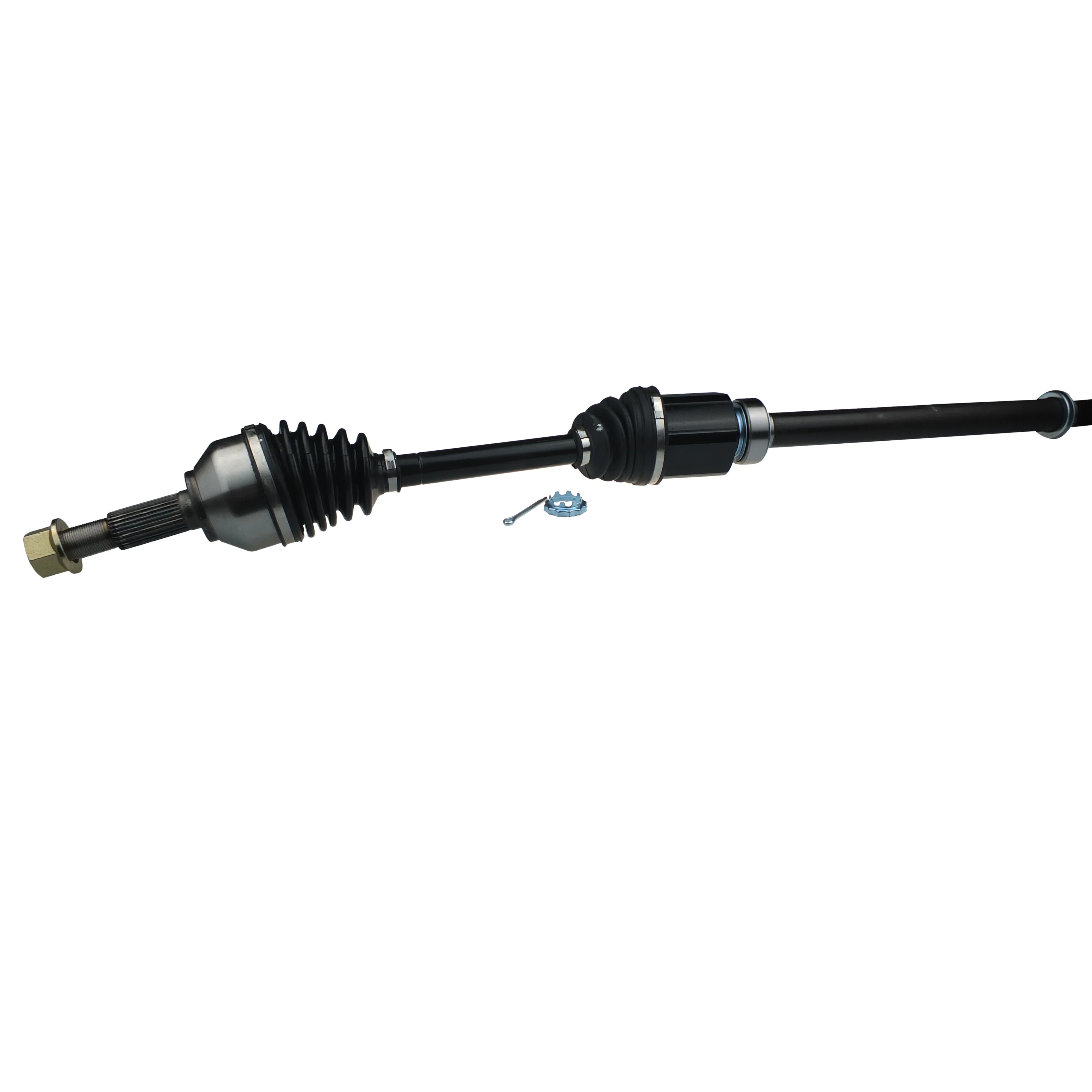

One Brand New Right Hand Side Drive Shaft Suit Automatic

Please Contact Us Before Buying - These Vehicles Have multiple variations that need to be checked and confirmed



Sub Models: ST, ST-L, Ti, Limited Edition, Adventure Edition, TI, 20G, 20S, FOUR 4WD, 25S, 25ST, 25X, 25XT, 25XTT, AXIS 4WD

Fits:

X-Trail T31 TANT31 2.5L QR25DE 4WD 08/2007~02/2014 Right Front CVT

Dualis J10 2.0L MR20DE  05/2007~03/2010 FWD for 04/2010~2016 go to CVA1390 recommended to check length of original shaft.

Dualis J10 2.0L MR20DE  12/2007~2016 AWD recommended to check length of original shaft, most common shaft is CVA1390

Qashqai  10/1987~08/1995 J10 2.0L MR20DE  05/2007~03/2010 FWD for 04/2010~2016 go to CVA1390 recommended to check length of original shaft.

Renault Koleos H45 09/2008 - 08/2016 2.5L 2TR.700/2/3 FWD Right Side CVT Only



SPECIFICATIONS

• Length (Compressed): 970 mm
• Spline Count Outer/Wheel Side: 29 TEETH
• Spline Count Inner/Diff Side: 27 TEETH
• Bearing O.D ON Extension: 62 mm
• Extension Shaft Length FROM INSIDE :396 mm
• Outboard Joint Type : Ball
• Inboard Joint Type Tripod
• Hub Nut Style :M4 x 1.5 Pitch

What You Get

1 x CV Shaft front Right .



Built tough to OEM specifications using heat-treated chrome steel; maximising product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.



What You Really Get

Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
