Timing Belt Kit



Gates Timing Component Kits come with a warranty that is exactly the same as that offered on new vehicles.

• Contains all the elements necessary for a complete timing system overhaul in one package, fit for each individual application.
• Total solution for any application can include: Timing Belt(s), Idler(s), Belt Tensioner(s), Hydraulic Tensioner, Water Pump (where required), Seals, Gaskets, O-rings and other components necessary for a complete overhaul.
• Choosing inferior products may severely shorten the life of a belt and cause major internal engine damage.

Vehicle Fitment Information For:

• Daihatsu Delta Diesel 3L/85KW 3.0 Di (V138) 1KD-FV U3_ Rear-Wheel Drive Platform/Chassis (10/03-12/06)

• Toyota Hiace Diesel 3L/75KW 3.0 D (KDH200, KDH223) 1KD-FTV TRH2__,KDH2__,LH2__,GDH2__ Rear-Wheel Drive Van (01/05-01/19)

• Toyota Hiace Diesel 2.5L/75KW 2.5 D-4D (KDH200, KDH220) 2KD-FTV TRH2__,KDH2__,LH2__,GDH2__ Rear-Wheel Drive Van (01/05-09/06)

• Toyota Hiace Diesel 3L/100KW 3.0 D (KDH221, KDH201) 1KD-FTV KDH223, KDH221, KDH201 Rear-Wheel Drive Van (05/10-01/19)

• Toyota Hiace Diesel 2.5L/94KW 2.5 D-4D 4WD (KDH205, KDH225) 2KD-FTV TRH2__,KDH2__,LH2__,GDH2__ All-wheel Drive Van (08/04-09/07)

• Toyota Hiace Diesel 2.5L/80KW 2.5 D-4D (KDH200, KDH220) 2KD-FTV TRH2__,KDH2__,LH2__,GDH2__ Rear-Wheel Drive Van (09/06-07/10)

• Toyota Hiace Diesel 3L/100KW 3.0 D 4WD (KDH206) 1KD-FTV TRH2__,KDH2__,LH2__,GDH2__ All-wheel Drive Van (09/07-11/08)

• Toyota Hiace Diesel 3L/80KW 3.0 D (KDH201, KDH221) 1KD-FTV TRH2__,KDH2__,LH2__,GDH2__ Rear-Wheel Drive Van (11/06-01/19)

• Toyota Hiace Diesel 3L/106KW 3.0 D 4WD (KDH206) 1KD-FTV TRH2__,KDH2__,LH2__,GDH2__ All-wheel Drive Van (11/08-05/19)

• Toyota Hiace Diesel 3L/100KW 3.0 D (KDH223) 1KD-FTV TRH2__,KDH2__,LH2__,GDH2__ Rear-Wheel Drive Bus (05/10-12/14)

• Toyota Hiace Diesel 3L/80KW 3.0 D (KDH221, KDH223, KDH203R) 1KD-FTV TRH2__,KDH2__,LH2__,GDH2__ Rear-Wheel Drive Bus (08/04-01/19)

• Toyota Hiace Diesel 2.5L/94KW 2.5 D-4D 4WD (KDH205, KDH227, KDH225) 2KD-FTV TRH2__,KDH2__,LH2__,GDH2__ All-wheel Drive Bus (08/04-09/07)

• Toyota Hiace Diesel 2.5L/80KW 2.5 D-4D (KDH222, KDH202, KDH212) 2KD-FTV TRH2__,KDH2__,LH2__,GDH2__ Rear-Wheel Drive Bus (09/06-12/06)

• Toyota Hilux Diesel 3L/120KW 3.0 D-4D (KUN16) 1KD-FTV _N1_,_N2_ Rear-Wheel Drive Platform/Chassis (02/05-08/06)

• Toyota Hilux Diesel 3L/120KW 3.0 D-4D 4WD (KUN26) 1KD-FTV _N1_,_N2_ All-wheel Drive Platform/Chassis (02/05-08/06)

• Toyota Hilux Diesel 3L/120KW 3.0 D-4D 4WD (KUN26) 1KD-FTV _N1_,_N2_,_N3_ All-wheel Drive Ute (03/05-08/06)

• Toyota Hilux Diesel 3L/120KW 3.0 D-4D (KUN16) 1KD-FTV _N1_,_N2_,_N3_ Rear-Wheel Drive Ute (08/05-08/06)

• Toyota Hilux Diesel 3L/126KW 3.0 D-4D (KUN16) 1KD-FTV _N1_,_N2_,_N3_ Rear-Wheel Drive Ute (08/06-05/15)

• Toyota Hilux Diesel 3L/126KW 3.0 D-4D (KUN16R) 1KD-FTV _N1_,_N2_ Rear-Wheel Drive Platform/Chassis (08/06-06/15)

• Toyota Hilux Diesel 3L/126KW 3.0 D-4D 4WD (KUN26) 1KD-FTV _N1_,_N2_,_N3_ All-wheel Drive Ute (08/06-09/15)

• Toyota Hilux Diesel 3L/126KW 3.0 D-4D 4WD (KUN26) 1KD-FTV _N1_,_N2_ All-wheel Drive Platform/Chassis (08/06-09/15)

• Toyota Land Cruiser Prado Diesel 3L/127KW 3.0 D-4D (KDJ150, KDJ155) 1KD-FTV _J15_ All-wheel Drive Closed Off-Road Vehicle (08/09-06/15)

• Toyota Land Cruiser Prado Diesel 3L/127KW 3.0 D-4D (KDJ120) 1KD-FTV _J12_ All-wheel Drive Closed Off-Road Vehicle (11/06-12/10)

• Toyota Reguis Ace Diesel 2.5L/80KW 2.5 D-4D (KDH200) 2KD-FTV KDH200,KDH220,KDH222 Rear-Wheel Drive Van (08/04-12/20)

• Toyota Reguis Ace Diesel 3L/106KW 3.0 D-4D (KDH201, KDH211, KDH221) 1KD-FTV KCH40 Rear-Wheel Drive Van (08/04-12/20)

• Toyota Reguis Ace Diesel 3L/106KW 3.0 D-4D 4WD (KDH206) 1KD-FTV KCH46 All-wheel Drive Van (08/04-12/20)

• Toyota Reguis Ace Diesel 3L/106KW 3.0 D-4D 4WD (KDH206) 1KD-FTV TRH2_,KDH2_ All-wheel Drive Bus (08/04-12/20)


Product Specifications

Article status

Normal

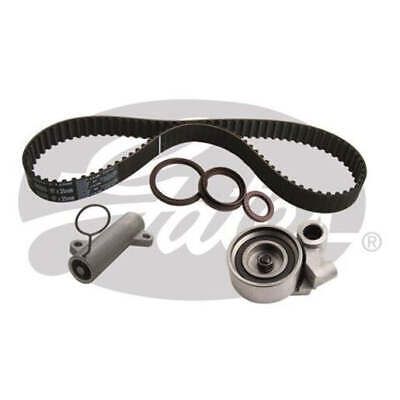

Kit contains

T1511	Timing Belt	1
T41183	Tensioner Pulley, timing belt	1
T43226	Vibration Damper, timing belt	1
GOSK1511	Shaft Seal Set, engine	1
