Water Pump & Timing Belt Kit



Thanks to Gates Timing Component Kits with Water Pumps, you have all the elements necessary for a complete overhaul in one package, fit for the application.

• Timing belt driven water pumps should always be replaced at the same time as the timing belt.
• Water pumps are highly efficient and durable. All pumps are engineered to OE specifications for look, fit and performance.
• No need to order loose parts any more: the metal components, timing belt(s), water pump and installation instructions come in one handy and compact package.



Product Specifications

Timing Belt

Material	HNBR (hydrogenated nitrile butadiene rubber)
Number of Teeth	163
Width [mm]	26,7
Tooth Pitch [mm]	9,525
Length [mm]	1553

 PowerGrip Guide Pulley

Surface	Smooth
Material	Metal
Outer Diameter [mm]	58
Inner Diameter [mm]	12
Width [mm]	29

Water Pump

Housing Type	without housing
Material	Aluminium Cast
Engine Timing	Timing Belt

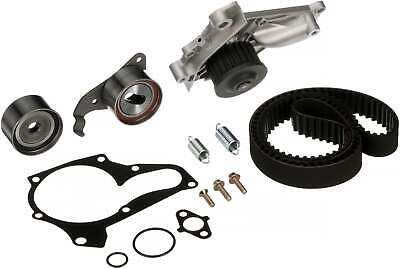

Kit contains

T199	Timing Belt	1
T41067	Tensioner, timing belt	1
T42025	Deflection/Guide Pulley, timing belt	1
GOSK199	Shaft Seal Set, engine	1
9010510032	Bolt	1
GG120	Shaft Seal Set, engine	1
GWP3047	Water Pump, engine cooling	1
SPG1992	Spring	1
