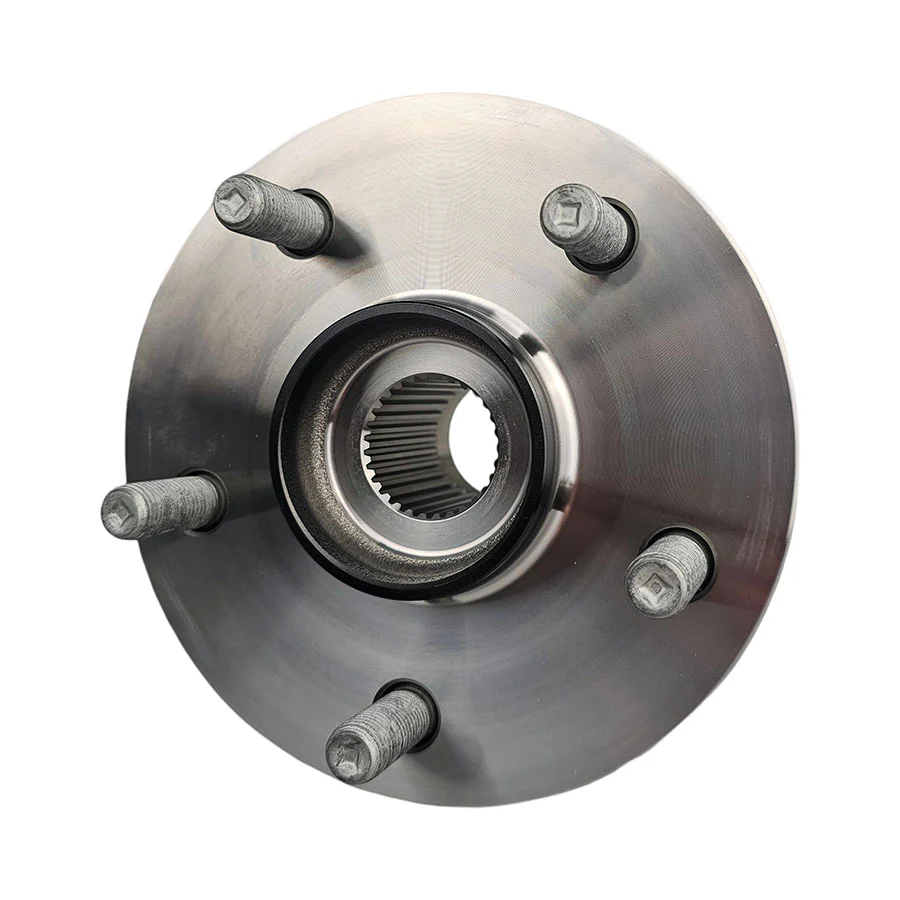

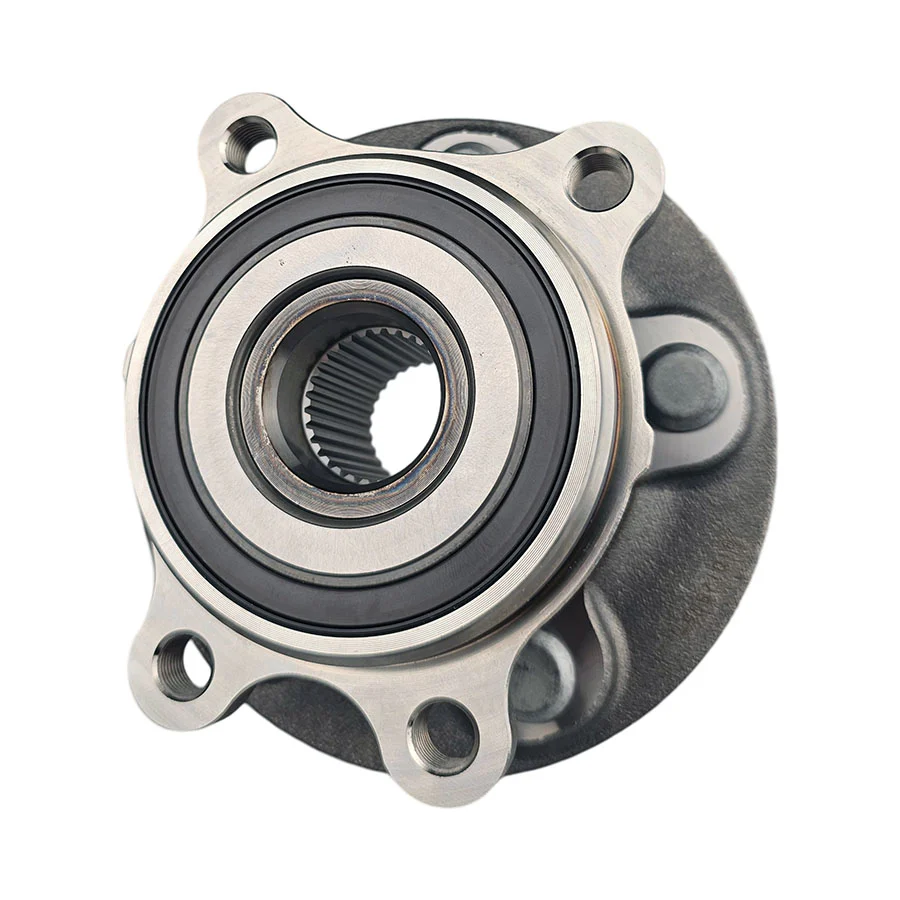

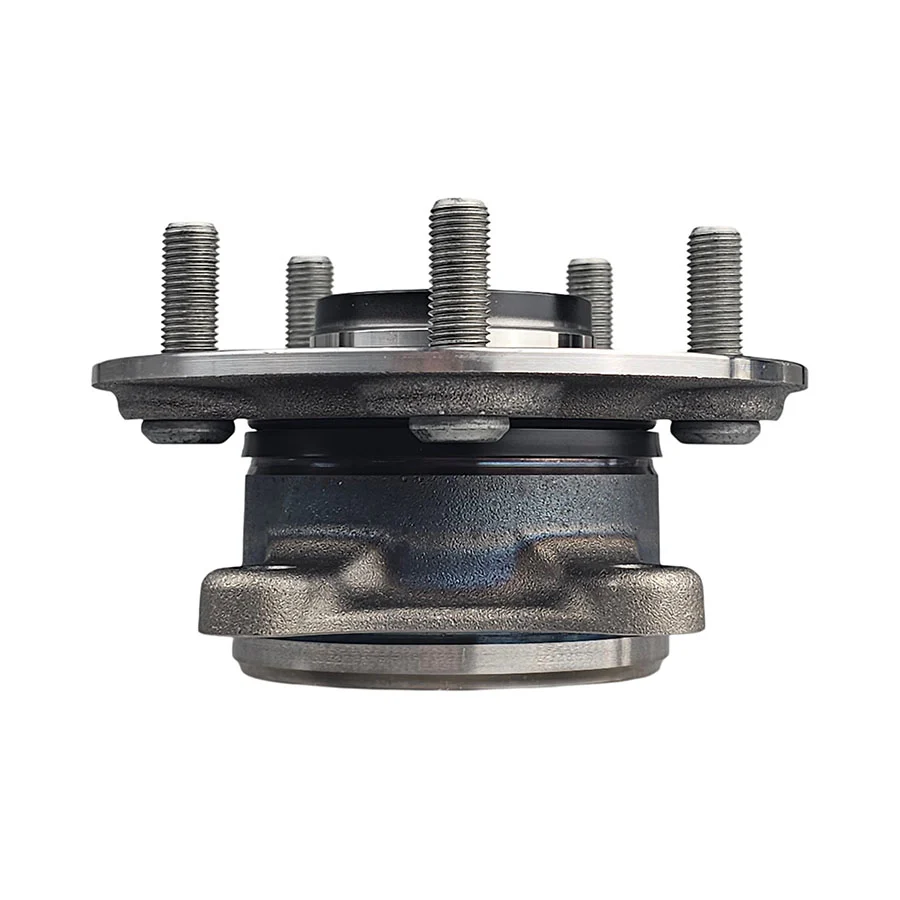

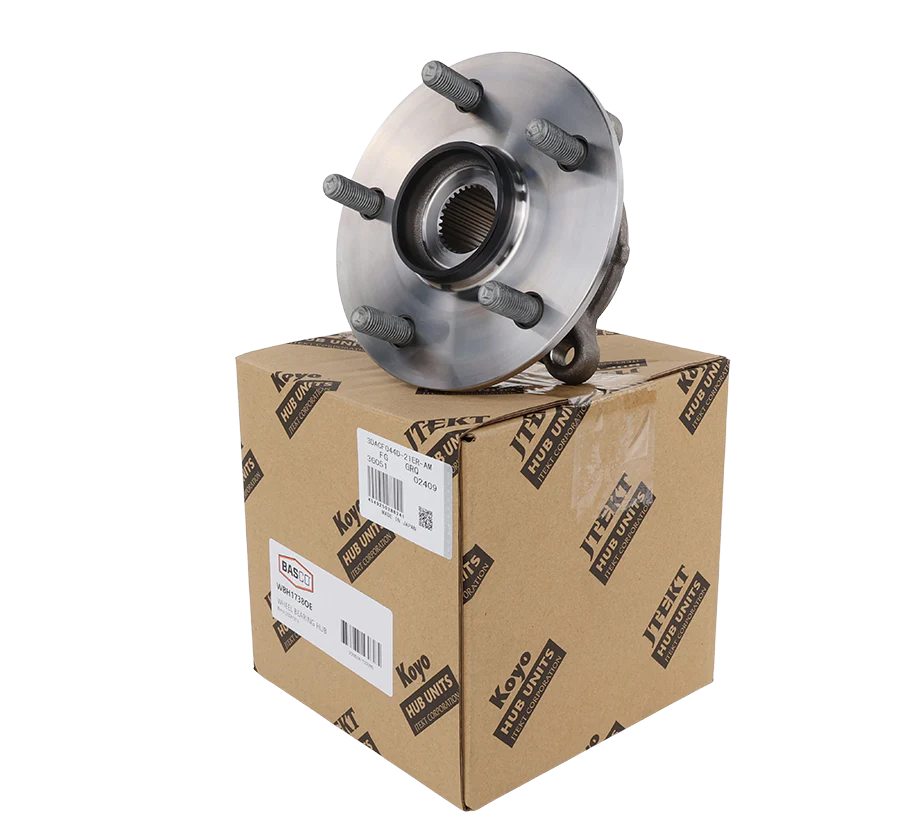

One Brand New Japanese* Front Wheel Bearing Hub Assembly

Trusted Brands for Peace of Mind
For some people, price is everything. However, for a lot of us, quality is key. Most of our hubs and bearing kits come from NTN, NSK or KOYO. All are industry leaders, known for their longevity and uncompromising quality.

*Please note, in some instances the country of origin may not be Japan but will be a genuine product. Brands can vary based on availability at the time of purchase.



Vehicle Fitment Information

• Toyota Kluger AXUH78 AXUH78R (03/2021-ON) AWD CVT
  Sub-Models Include HYBRID, GRANDE HYBRID, GX HYBRID, GXL HYBRID
• Toyota Kluger GSU75 GSU75R (03/2021-10/2022) AWD AUTO
  Sub-Models Include GRANDE, GX. GXL
• Toyota Kluger TXUA75 (10/2022 - On) AWD AUTO
  Sub-Models Include GRANDE, GXL, GX




Specifications and Sizing

• Integrated ABS: Yes
• Spline Count: 30 Teeth
• Wheel Flange Outer Diameter: 152mm
• 5 Stud PCD: M12 x 1.5 @114mm
• Wheel Pilot Diameter: 60mm
• Brake Pilot Diameter: 62mm
• Flange Offset: 53mm
• Hub Pilot diameter: 93mm
• Hub Pilot Depth: 11.8mm
• 4 Bolt Hub: M12 x 1.5
• 4 Bolt Hub, Centre to Centre D1: 50.5mm
• 4 Bolt Hub, Centre to Centre D2: 72mm




What's Included

• 1 x Full Hub Assembly

 Our precise machining practices ensure that we deliver a premium product that produces a smoother roll and longer life span. All our bearing kits, hubs and componentry come with a 12 month/20,000km warranty. They are backed up with a professional customer service team that has been in the industry for over 30 years. We are the wheel end experts. Our customer service team will be there to support you throughout the entire process. From questions you have pre-purchase to follow up support post purchase. Make the right decision and buy with a company that has a proven track record in service and supply.
