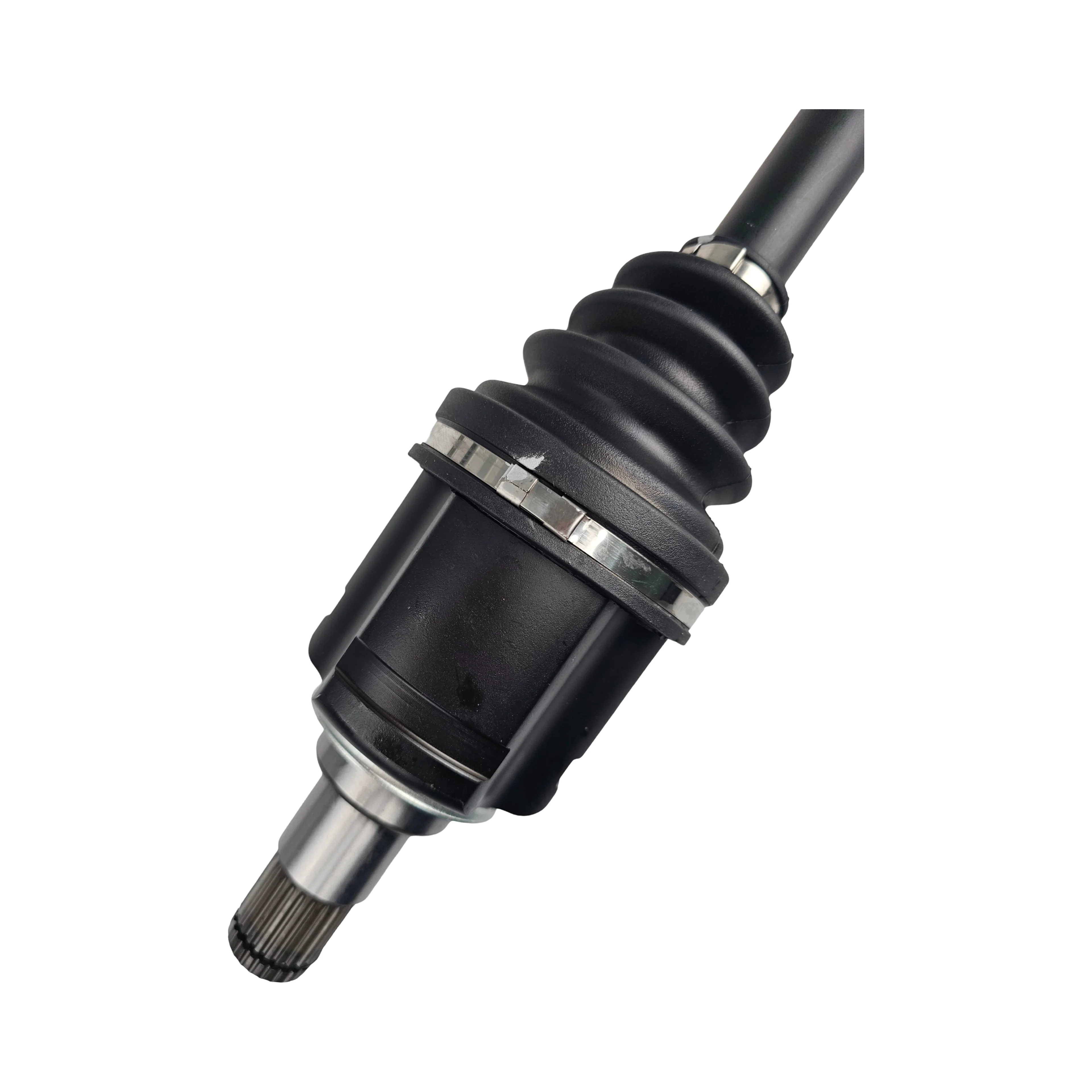

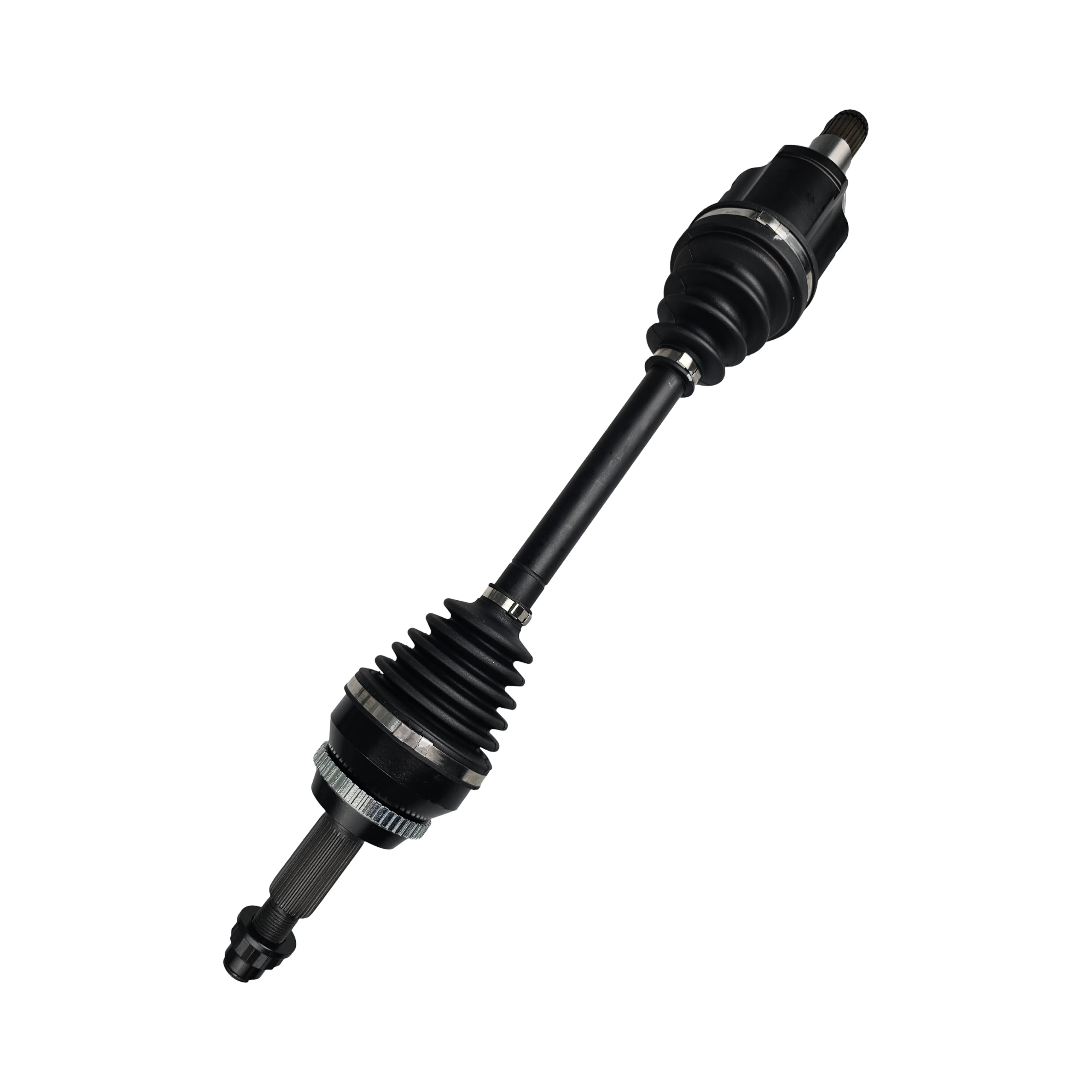

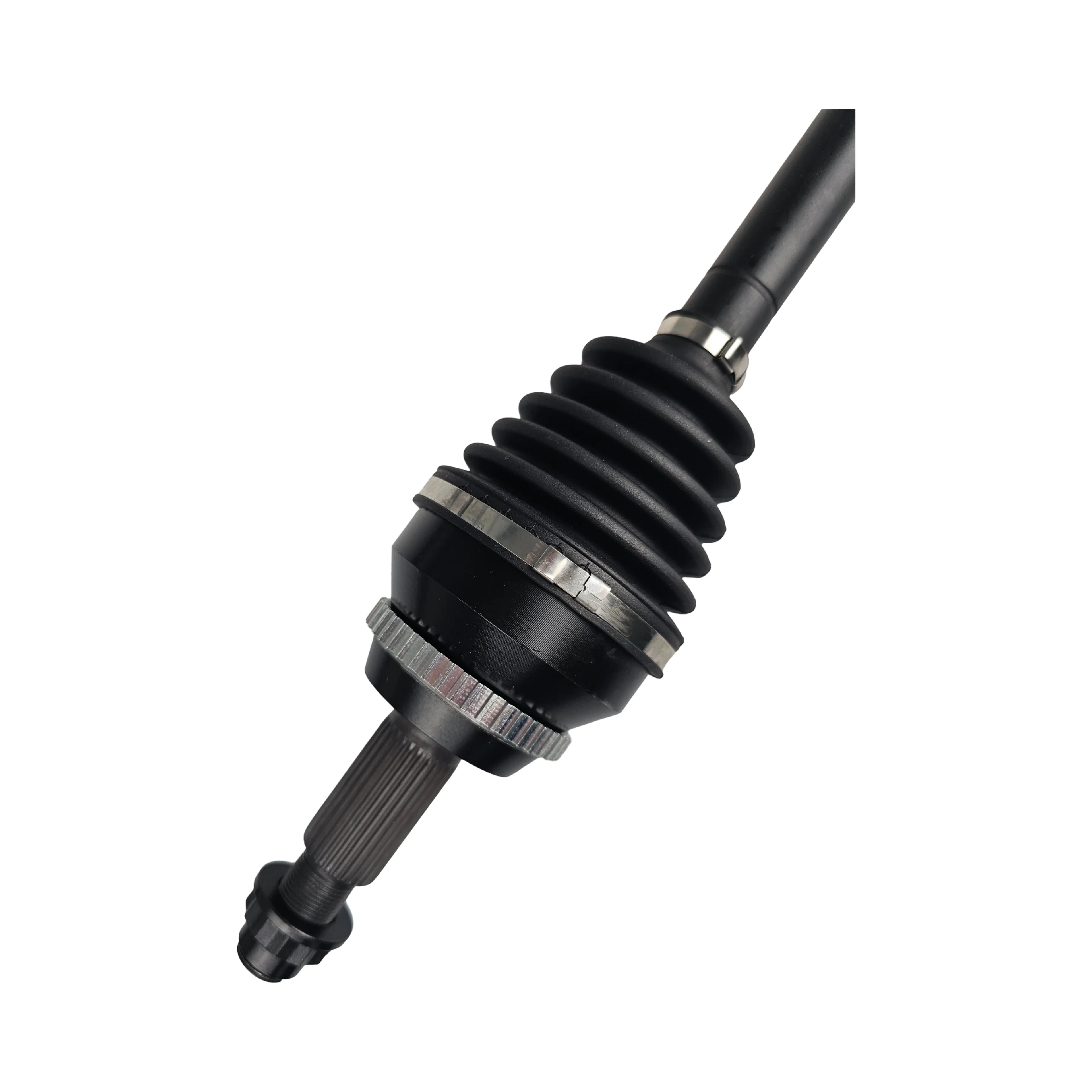

CV Axle Drive Shaft - Front Left-Hand Side Automatic FWD AWD

Front left-hand side, does not fit Kluger 2GRFKS engine models - please see CVA1575

Built tough to OEM specifications using heat-treated chrome steel, maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

Vehicle Fitment

• Toyota Kluger GSU50 GSU55 3.5L 2GRFE FWD Automatic AWD (03/2014 - 02/2017) Left
  Includes Sub-models GX, GXL, Grande
• Toyota Highlander GSU55 GSU55R 3.5L 2GRFE 2GRFKS Automatic AWD (03/2014 - 03/2021) Left
  Includes Sub-models GX, GXL, Limited, Limited ZR

Sizing and Specifications

• Length (Compressed): 675mm
• Spline Count - Outer/Wheel Side: 30T
• Spline Count - Inner/Diff Side: 24T
• ABS Ring Teeth: 48
• Outboard Joint Type: Ball
• Inboard Joint Type: Tripod
• Drive Shaft Seal - Inner ID: 50mm
• Hub Nut Style: M22 x 1.5

What's Included

• 1 x CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
