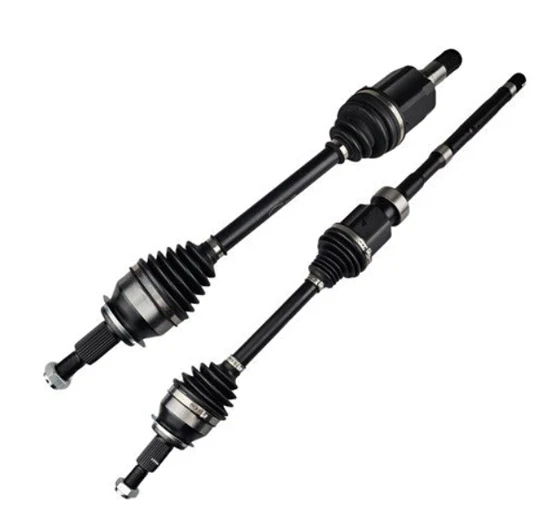

CV Axle Drive Shaft - Pair Front Left and Right Hand Side Automatic Transmission AWD

Pair kit, CX-5 KE KE5AW 2.5L automatic transmission only

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.



Vehicle Fitment

• Mazda CX-5 KE5AW 2.5L PY-VPS AWD (03/2013 - 03/2017) Automatic Only
  Includes Sub Models AKERA, GRAND TOURING, GT, GT SAFETY, MAXX, MAXX SAFETY, MAXX SPORT, MAXX SPORT SAFETY



Sizing and Specifications

RIGHT CV Shaft

• Length (Compressed) : 1019mm

• Spline Count Outer/Wheel Side : 31

• Spline Count Inner/Diff Side : 31

LEFT CV Shaft

• Length (Compressed) : 652mm

• Spline Count Outer/Wheel Side : 31

• Spline Count Inner/Diff Side : 31



What's Included

• 2 x CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
