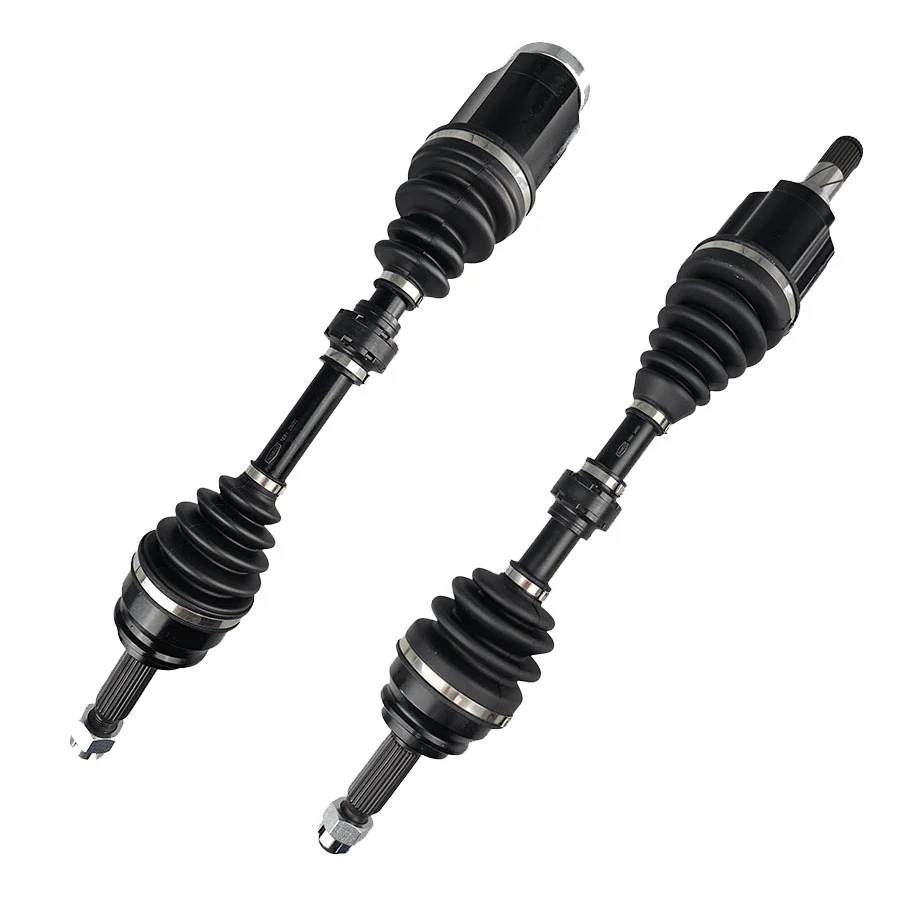

CV Axle Drive Shaft - PAIR Left and Right Hand Side Manual FWD

PAIR kit, Manual Only

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

Vehicle Fitment

• Dodge Caliber PM 1.8L EBA / 2.0L ECD / 2.4L ED3 FWD (08/2006 - 08/2010) Manual Only
  Includes Sub-models ST, SX, SXT, R/T
• Jeep Compass MK 2.0L ECN FWD (01/2012 - 01/2017) Manual Only
  Includes Sub-models Sport, Blackhawk, Limited

Sizing and Specifications

Left CV Shaft

• Length (Compressed): 637mm
• Spline Count - Outer/Wheel Side: 28T
• Spline Count - Inner/Diff Side: 27T
• Inboard Joint Type: Tripod
• Outboard Joint Type: Ball

• Hub Nut Style: M22 x 1.5
• Drive Shaft Seal - Diff Side ID: 40mm

Right CV Shaft

• Length (Compressed): 585mm
• Spline Count - Outer/Wheel Side: 28T
• Spline Count - Inner/Diff Side: 26+2 Blank
• Inboard Joint Type: Tripod
• Outboard Joint Type: Ball

• Hub Nut Style: M22 x 1.5




What's Included

• 2 x CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
