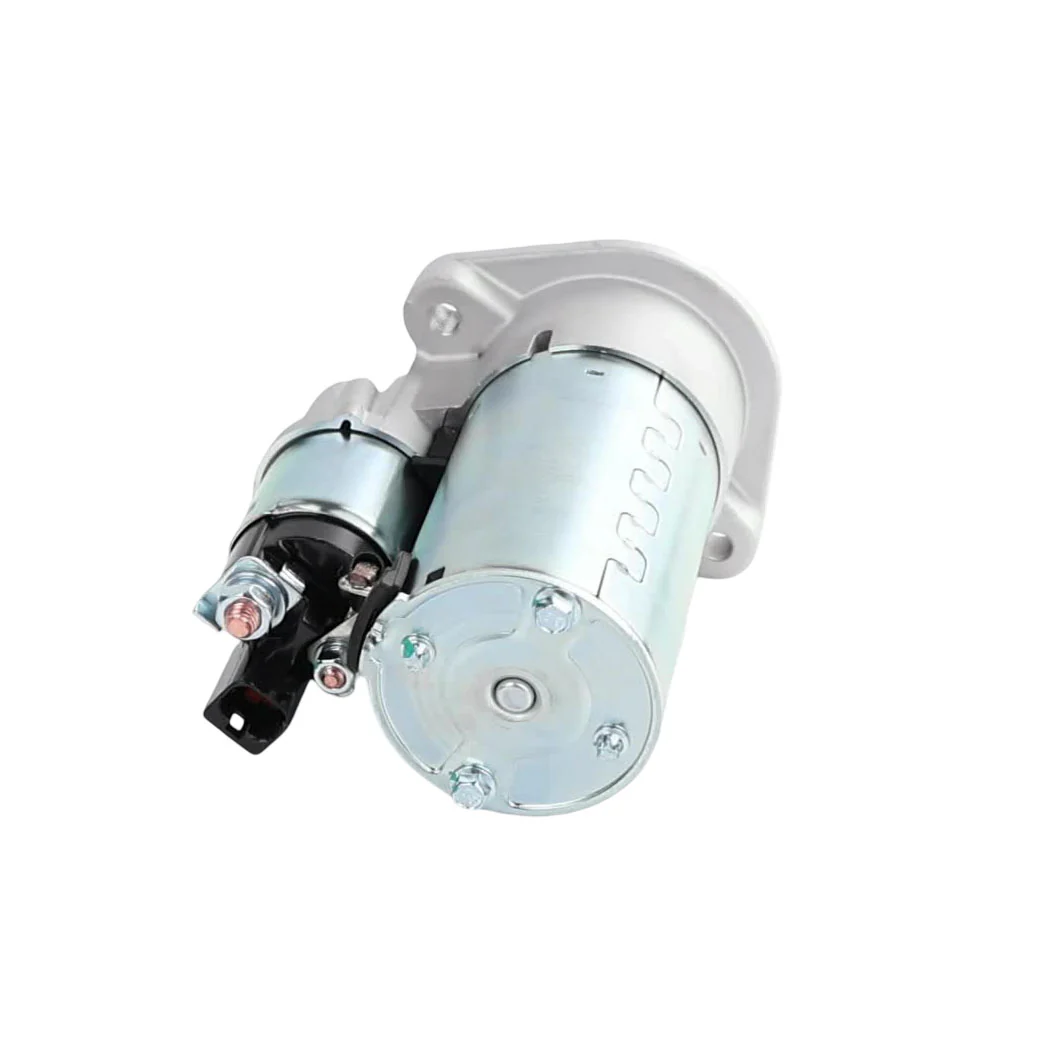

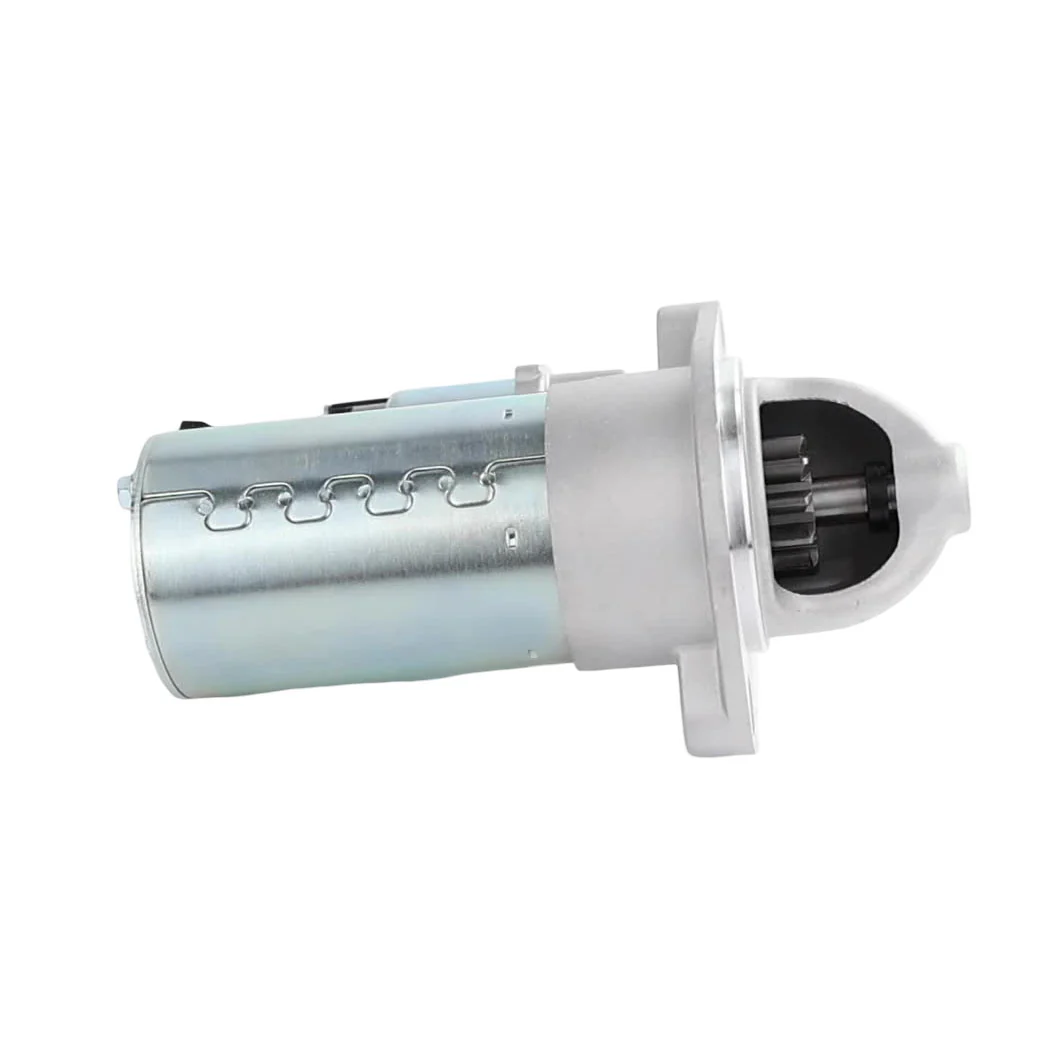

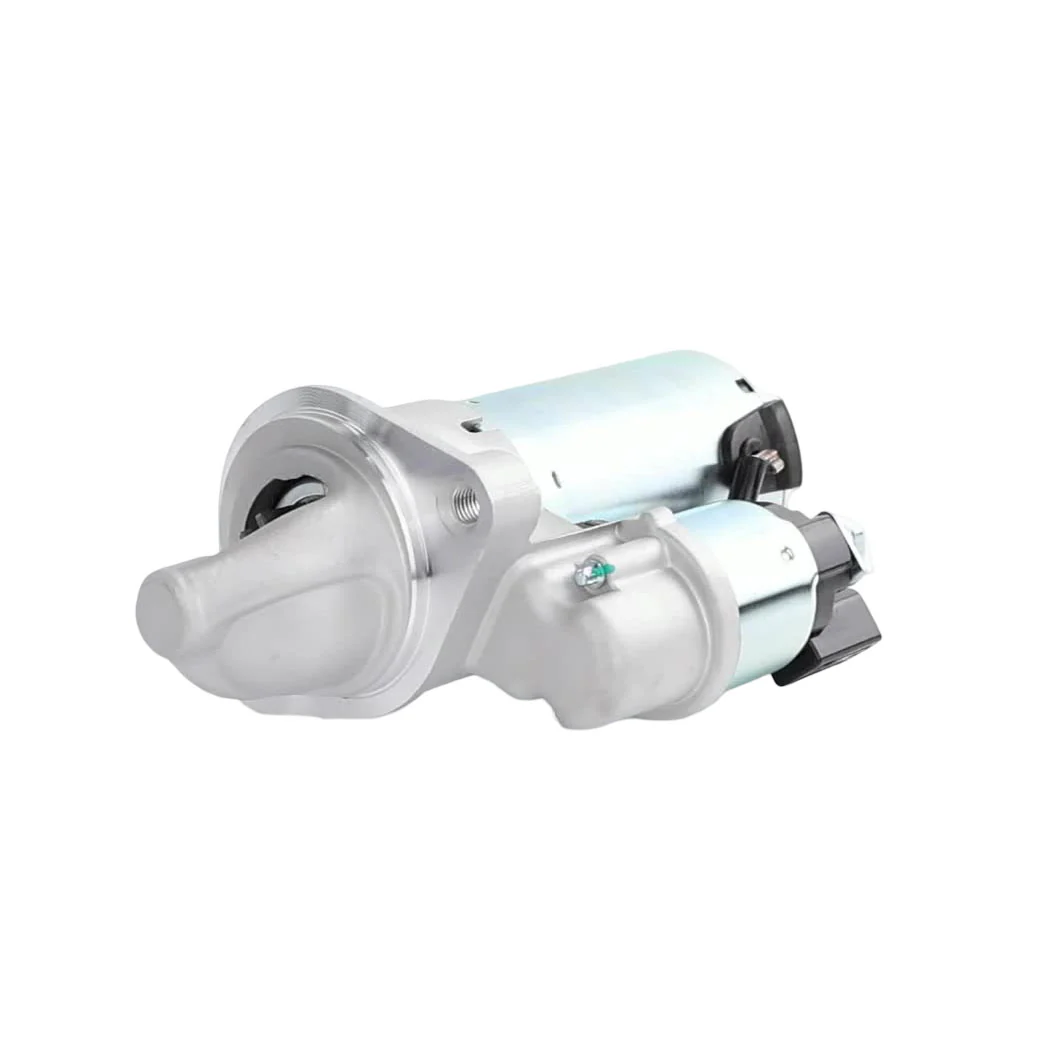

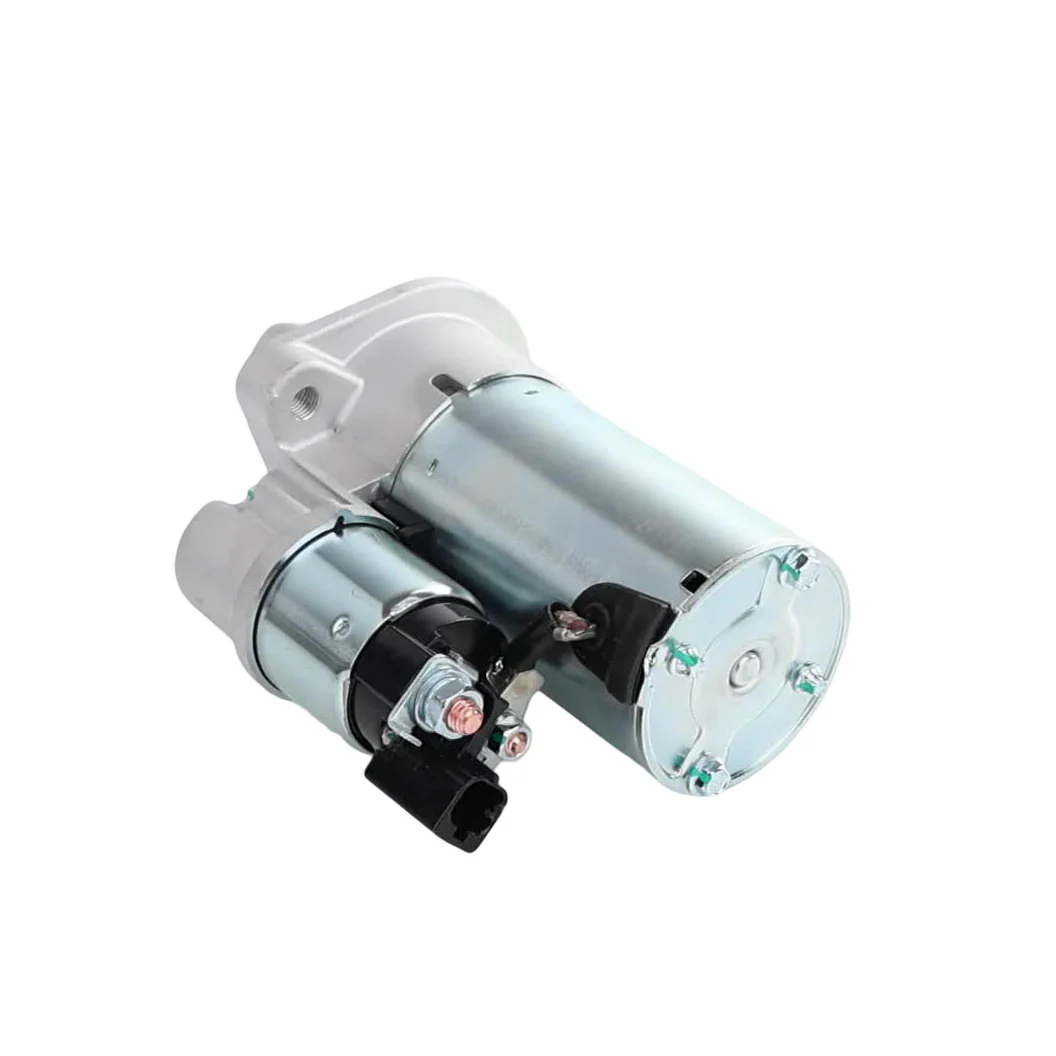

One Brand New Starter Motor

11-Tooth Pinion, For models that use 13-Tooth please see BSM1088 - Check OE Part Number

We are proud to offer top-tier starter motors that set the standard in automotive excellence. Our products are crafted in accordance with stringent international quality standards (ISO/TS16949), ensuring reliability and superior performance for a wide range of vehicles.



Vehicle Fitment

• Hyundai i30 GD 1.8L G4NB / 2.0L G4NC FWD (05/2012 - 03/2017) Most Common, 11-Tooth
  Includes Sub-models Active, Active X, Premium, Premium L.E., Elite, Elite limited Edition, SE, Trophy, SR, SR Premium
• Hyundai i40 VF 2.0L G4NC FWD (10/2011 - 04/2019) 11-Tooth
  Includes Sub-models Active, Elite, Premium, Tourer, Active Tourer, Premium Tourer
• Hyundai iX35 LM 2.0L G4NC FWD (10/2013 - 06/2015) Automatic Only, 11-Tooth
  Includes Sub-models Active, Elite, Trophy, SE



Specifications and Sizing

• Voltage: 12V

• KW: 1.2
• Rotation Direction: Clockwise
• Pinion Teeth: 11T
• Pinion at Rest: 20mm
• Pinion Diameter: 34mm
• Overall Length: 175mm
• Mounting Bolt Centre-Centre(s): 95mm
• Mounting Hole Diameter: M8 x 1.25

• Flange Diameter: 70mm
• Nose Cone Length: 52mm

What's Included

• 1 x Starter Motor

All our parts come with a 12 month/20,000km warranty. They are backed up with a professional customer service team that has been in the industry for over 100 years. We are the wheel end experts. Our customer service team will be there to support you throughout the entire process. From questions you have pre-purchase to follow up support post purchase. Make the right decision and buy with a company that has a proven track record in service and supply.
