Front Wheel Bearing Hub For Hyundai Elantra HD, i30 i30cw FD | Kia Cerato TD - Double Ring Design

Product image 1
1 / 2

Front Wheel Bearing Hub For Hyundai Elantra HD, i30 i30cw FD | Kia Cerato TD - Double Ring Design

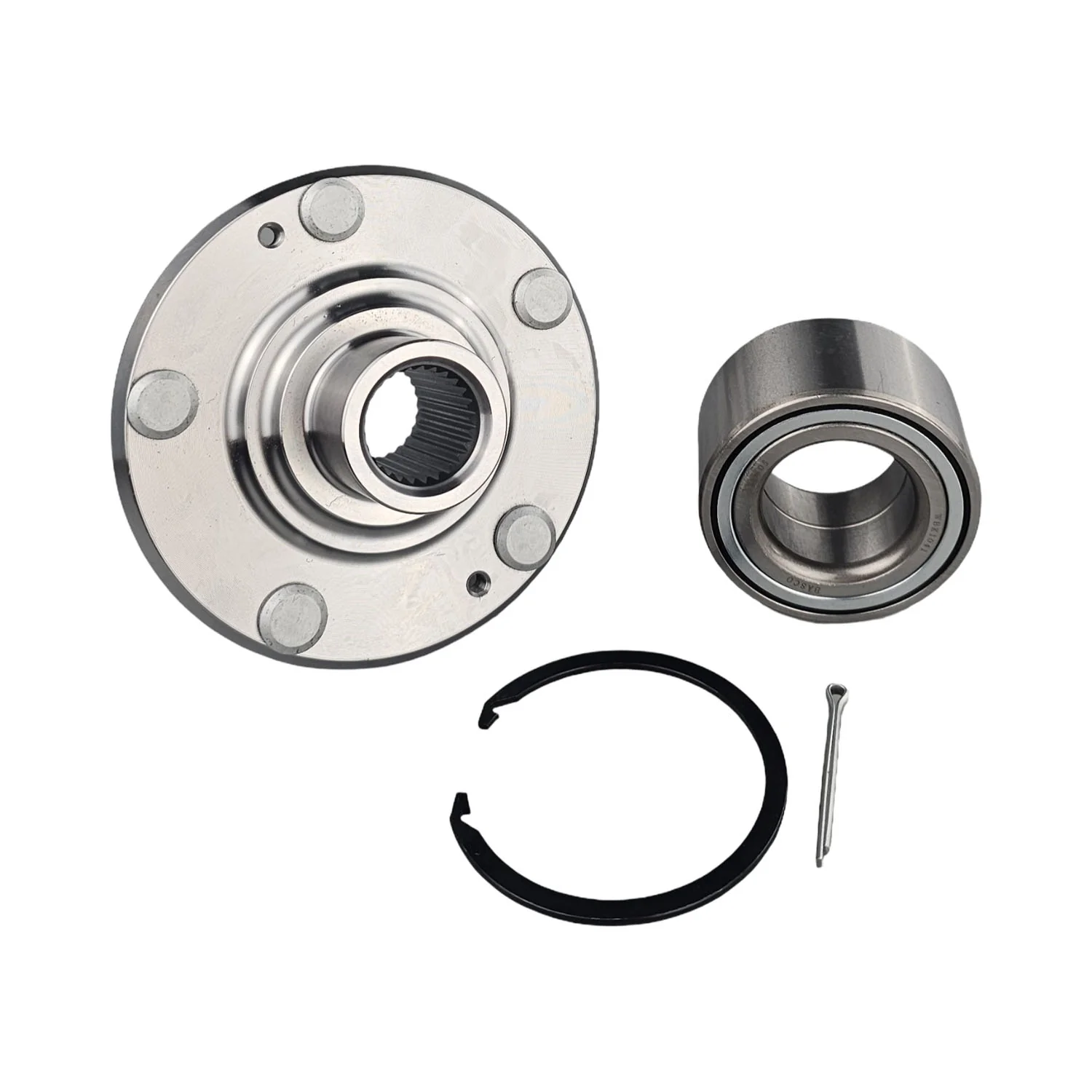

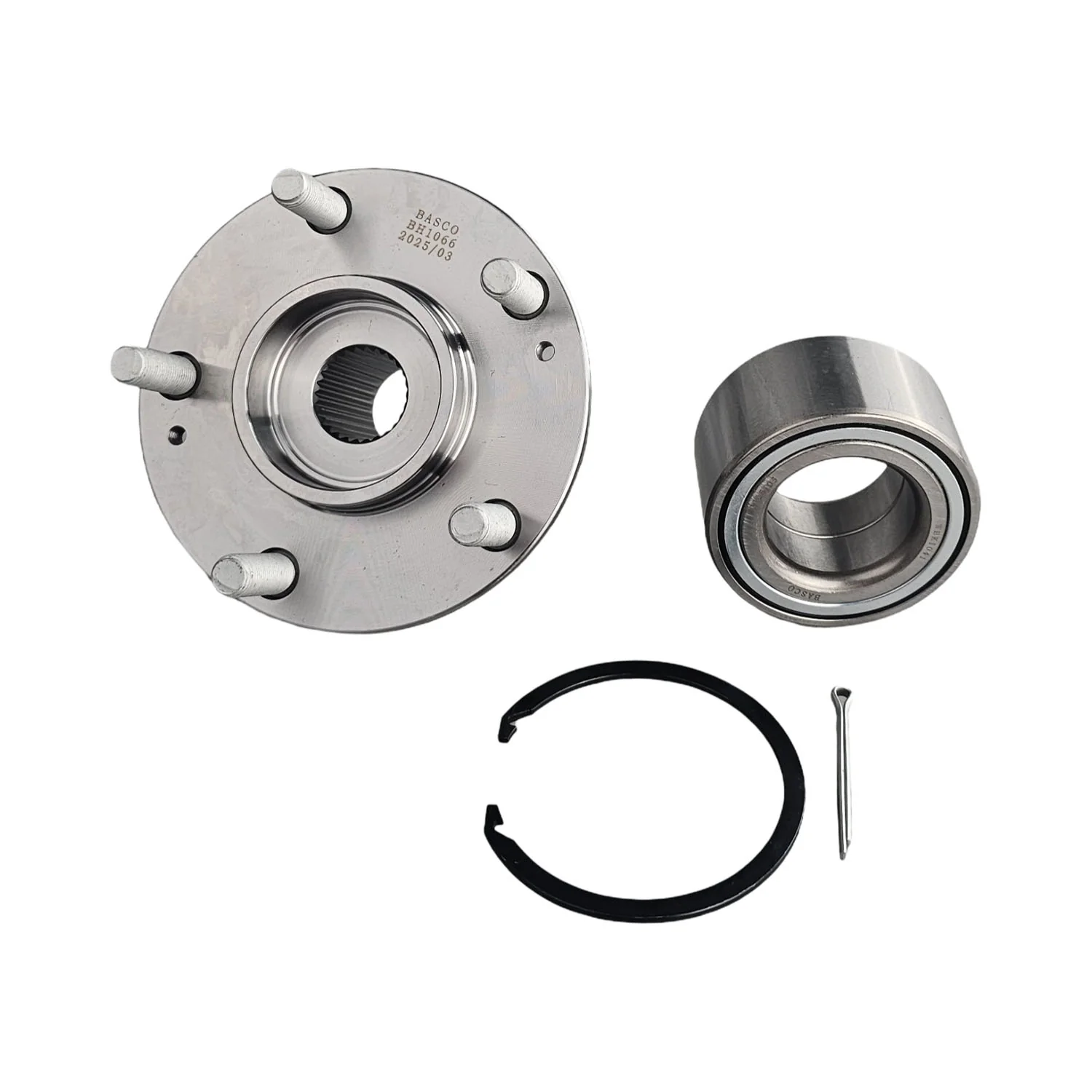

One Brand New Front Wheel Hub

***Sub Assembly Needs Pressing, Double Ring Design. For Single Ring Hub Design Please See WBH1720. For Bearing Only Please See WBK1041***

Premium wheel end components engineered to OE specifications for reliability and long life.

Vehicle Fitment

  • Hyundai Elantra SX HD DT4ID (10/2006~05/2011) 2.0L Petrol G4GC
  • Hyundai Elantra SLX, Elite HD DU4ID (10/2006~05/2011) 2.0L Petrol G4GC
  • Hyundai i30 SX FD DB5T (10/2007~08/2011) 1.6L Diesel D4FB
  • Hyundai i30 SLX FD DC5T (10/2007~08/2011) 1.6L Diesel D4FB
  • Hyundai i30 SX, Trophy FD DB51E (10/2007~04/2012) 2.0L Petrol G4GC
  • Hyundai i30 SLX, SR FD DC51E (10/2007~04/2012) 2.0L Petrol G4GC
  • Hyundai i30 SX FD DB51D (04/2008~03/2012) 1.6L Petrol G4FC
  • Hyundai i30 SX FD DB51S (09/2011~04/2012) 1.6L Diesel D4FB
  • Hyundai i30 SLX FD DC51S (09/2011~04/2012) 1.6L Diesel D4FB
  • Hyundai i30cw SX FD DB81T (03/2009~08/2011) 1.6L Diesel D4FB
  • Hyundai i30cw SLX FD DC81T (03/2009~08/2011) 1.6L Diesel D4FB
  • Hyundai i30cw SX FD DB81D (03/2009~01/2013) 1.6L Petrol G4FC
  • Hyundai i30cw SX, Trophy FD DB81E (03/2009~01/2013) 2.0L Petrol G4GC
  • Hyundai i30cw SLX FD DC81E (03/2009~01/2013) 2.0L Petrol G4GC
  • Hyundai i30cw SX FD DB81S (09/2011~01/2013) 1.6L Diesel D4FB
  • Hyundai i30cw SLX FD DC81S (09/2011~01/2013) 1.6L Diesel D4FB
  • Kia Cerato Limited Edition TD FH222 (10/2008~01/2011) 2.0L Petrol G4KD
  • Kia Cerato Koup TD FW612 (09/2009~01/2011) 2.0L Petrol G4KD
  • Kia Cerato S, Si TD FW412 (01/2009~03/2013) 2.0L Petrol G4KD
  • Kia Cerato S, Si TD FW512 (09/2009~07/2013) 2.0L Petrol G4KD
  • Kia Cerato S, Si TD FT512 (10/2010~07/2013) 2.0L Petrol G4KD
  • Kia Cerato Koup Si, Koup SLS TD FU612 (01/2011~09/2013) 2.0L Petrol G4KD
⚠️ Important Notes for You:
We strongly advise using the Australian Number Plate lookup to confirm fitment.

Sizing and Specifications

    • ABS: No Tone Ring on Shaft
    • Spline Quantity: 27
    • Wheel Stud Quantity: 5
    • Hub Pilot Diameter: 42 mm
    • Brake Pilot Diameter: 69 mm
    • Wheel Pilot Diameter: 67 mm
    • PCD: 114 mm
    • Flange Diameter: 139 mm
    • Notes: Bearing Size: 42 x 78 x 40 mm
    • Notes: Bare Hub Height: 80.5 mm

What's Included

    • 1 x Full Hub Assembly (Sub Assembly)

All components include a 12 month/20,000km warranty and support from our specialist team.
